HGW HYDRAULICS

4603-32-32-NWO-FG

2" Beaded Hose Barb × 2-1/2-12 Male Adjustable ORB · Male Adjustable Elbow

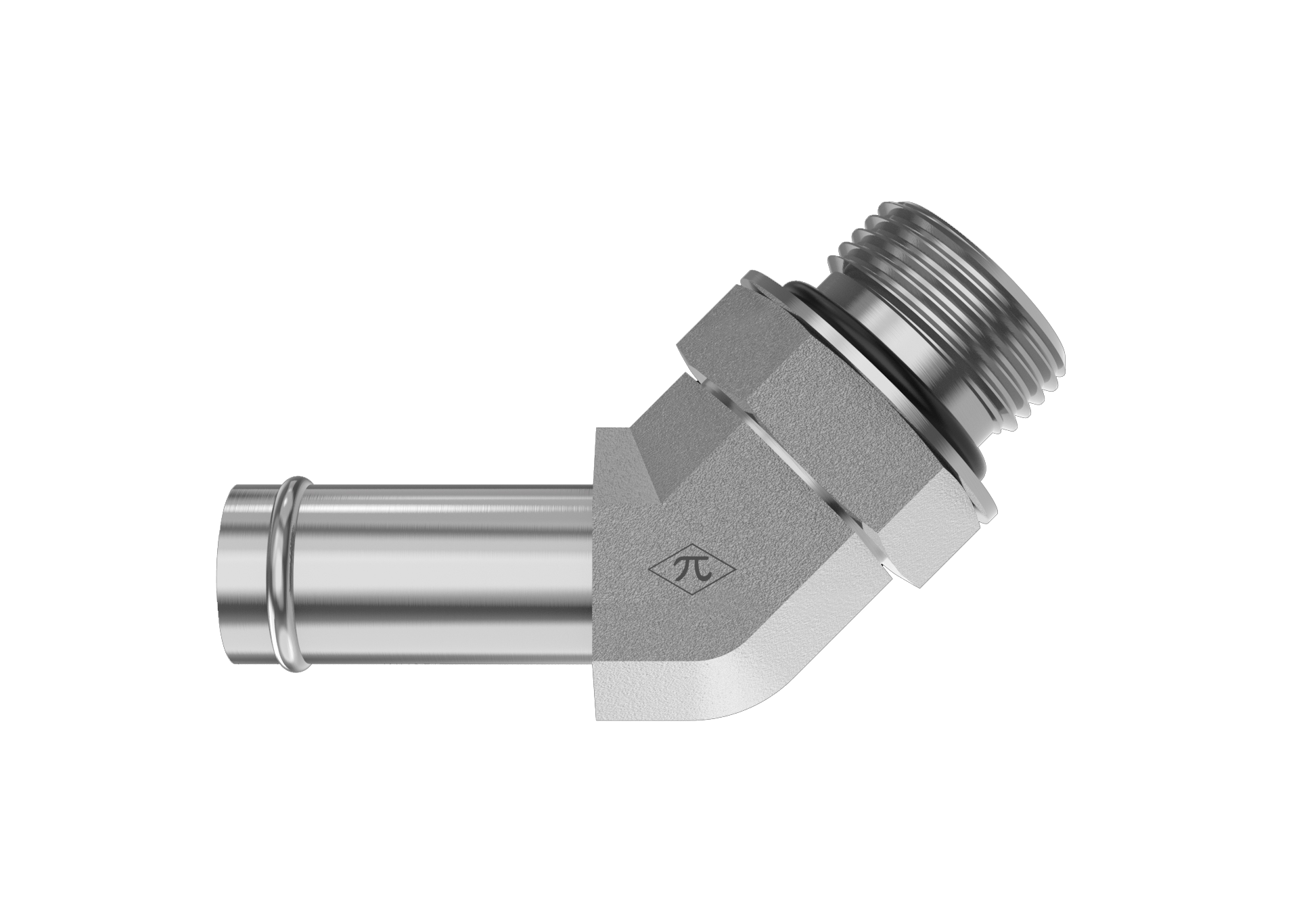

The HGW 4603-32-32-NWO-FG is a male adjustable elbow joining 2" beaded hose barb to 2-1/2-12 male adjustable ORB. Made from trivalent-zinc-plated steel, it uses SAE J1231-2 and SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Adjustable Elbow
$126.04
(0) Write a Review
SKU:
4603-32-32-NWO-FG

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID2"
StandardSAE J1231-2
Size2"
Connection B
TypeMale Adjustable ORB
Port Size2-1/2-12
StandardSAE J1926
Thread Type2-1/2-12 UN
Size2-1/2-12
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight2.31 lb
ShapeMale Adjustable Elbow
Cross References
AeroquipFF1168-3232S
Parker35TB-32-32

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
