HGW HYDRAULICS

5000-04-02

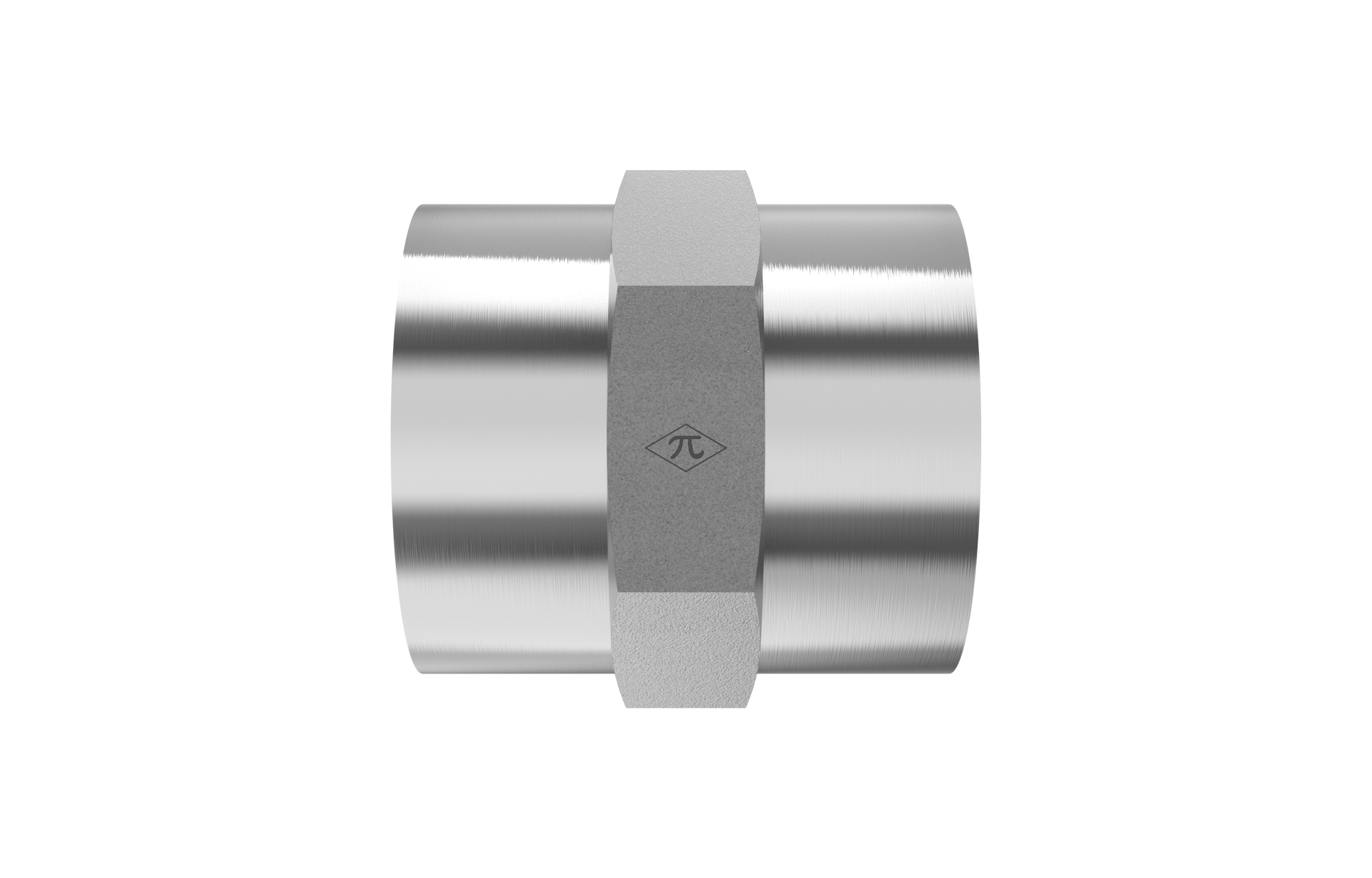

1/4" Female NPTF × 1/8" Female NPTF · Coupling

The HGW 5000-04-02 is a coupling joining 1/4" female NPTF to 1/8" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Pipe Coupling
$1.52
(0) Write a Review
SKU:
5000-04-02

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection B
TypeFemale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapePipe Coupling
Weight0.10 lb
Cross References
Aeroquip2096-4-2S
Parker1/4 X 1/8 GG-S
SAE Ref.SAE J514 4-2 140138C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
