HGW HYDRAULICS

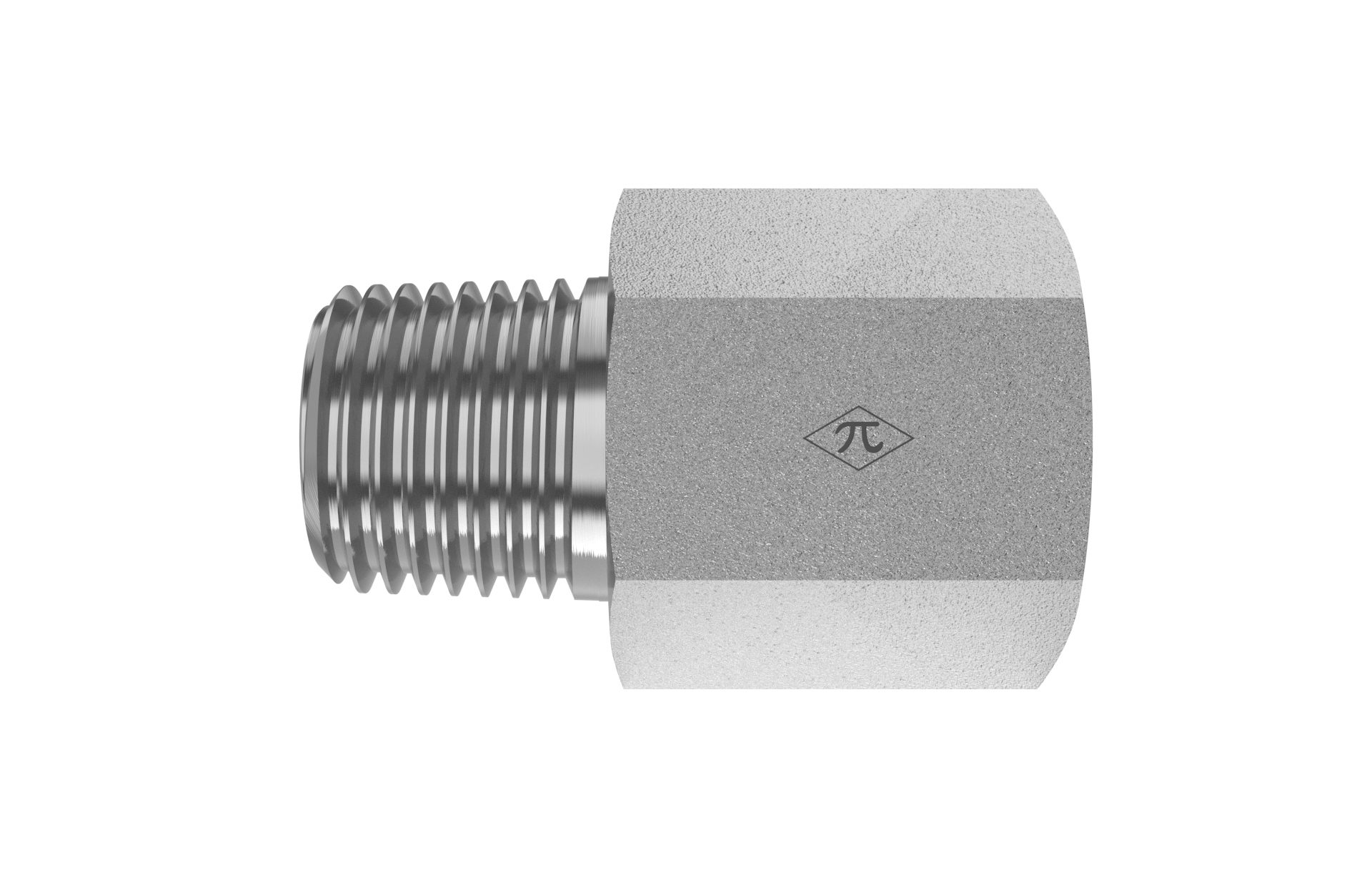

5405-04-02

1/4" Male NPTF 30° x 1/8" Female NPTF

5405-04-02 is a 1/4" Male NPTF 30° x 1/8" Female NPTF in the 5405 Series. For connecting a smaller male pipe end to a larger female pipe end.

  • Steel
  • Trivalent Zinc
  • Adapter
$2.05
(0) Write a Review

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection B
TypeFemale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdapter
Weight0.07 lb
Cross References
Aeroquip2040-4-2S
Parker1/8 X 1/4 FG-S
SAE Ref.SAE J514 2-4 140139C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
