HGW HYDRAULICS

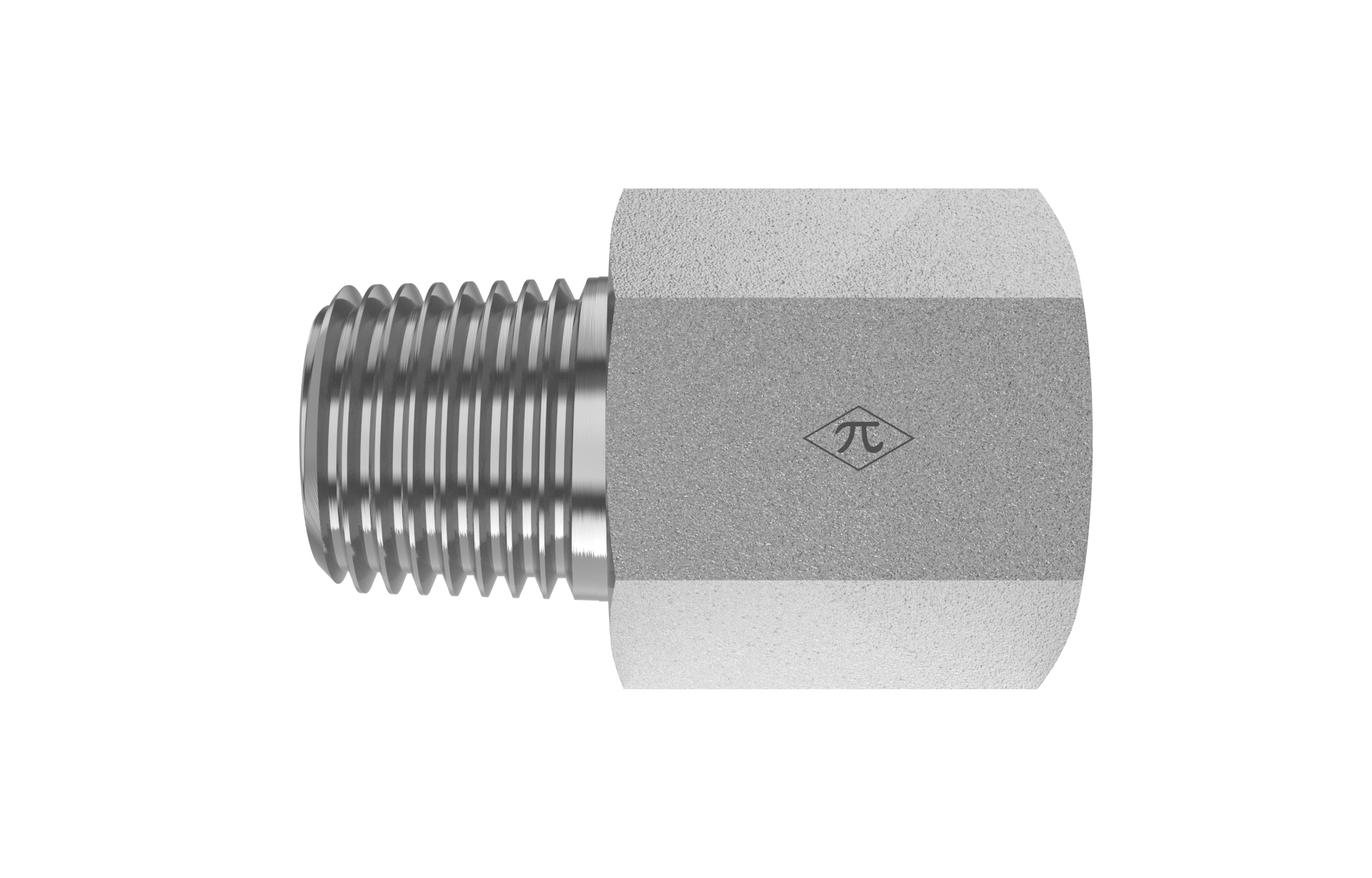

5405-16-12

1" Male NPTF 30° x 3/4" Female NPTF

5405-16-12 is a 1" Male NPTF 30° x 3/4" Female NPTF in the 5405 Series. For connecting a smaller male pipe end to a larger female pipe end.

  • Steel
  • Trivalent Zinc
  • Adapter
$5.18
(0) Write a Review

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection B
TypeFemale NPTF
Pipe Size3/4"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdapter
Weight0.47 lb
Cross References
Aeroquip2040-16-12S
Parker3/4 X 1 FG-S
SAE Ref.SAE J514 12-16 140139C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
