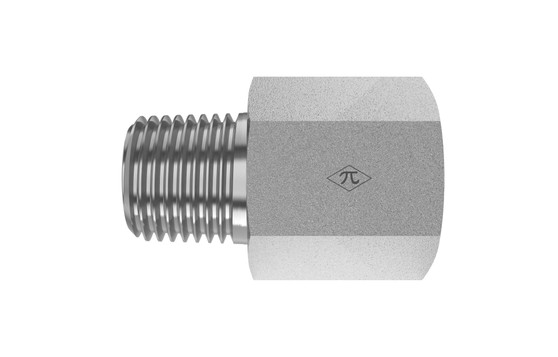

Google Merchant product image

HGW HYDRAULICS

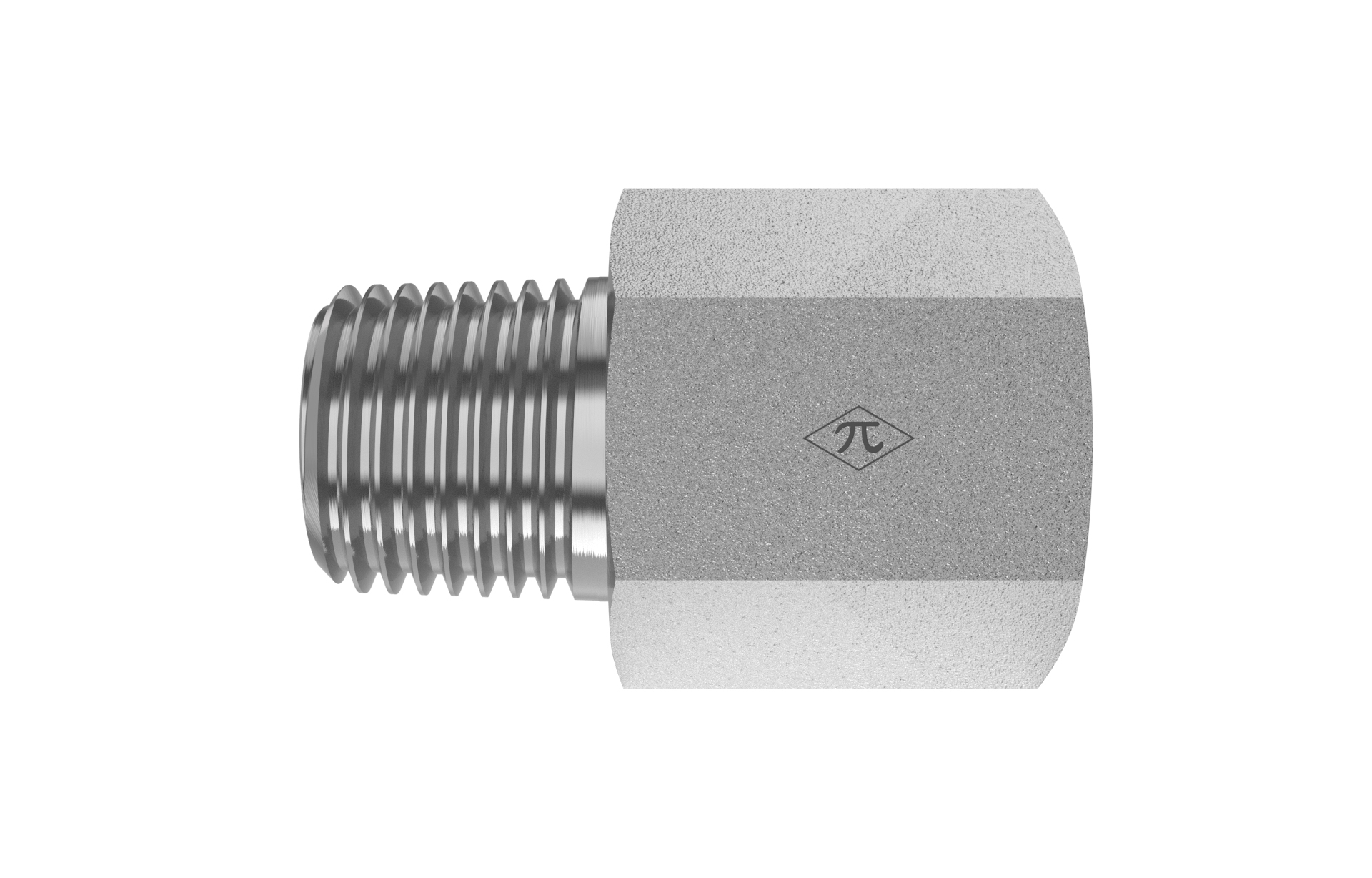

5405-16-24-SS

1" Male NPTF 30° x 1-1/2" Female NPTF

5405-16-24-SS is a 1" Male NPTF 30° x 1-1/2" Female NPTF in the 5405 Series. For connecting a smaller male pipe end to a larger female pipe end.

  • Stainless Steel
  • Adapter
  • None
$324.76
(0) Write a Review

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection B
TypeFemale NPTF
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeAdapter
Weight1.38 lb
PlatingNone
Cross References
Aeroquip259-2040-16-24
Parker1 1/2 X 1 FG-SS
SAE Ref.SAE J514 24-16 140139S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
