HGW HYDRAULICS

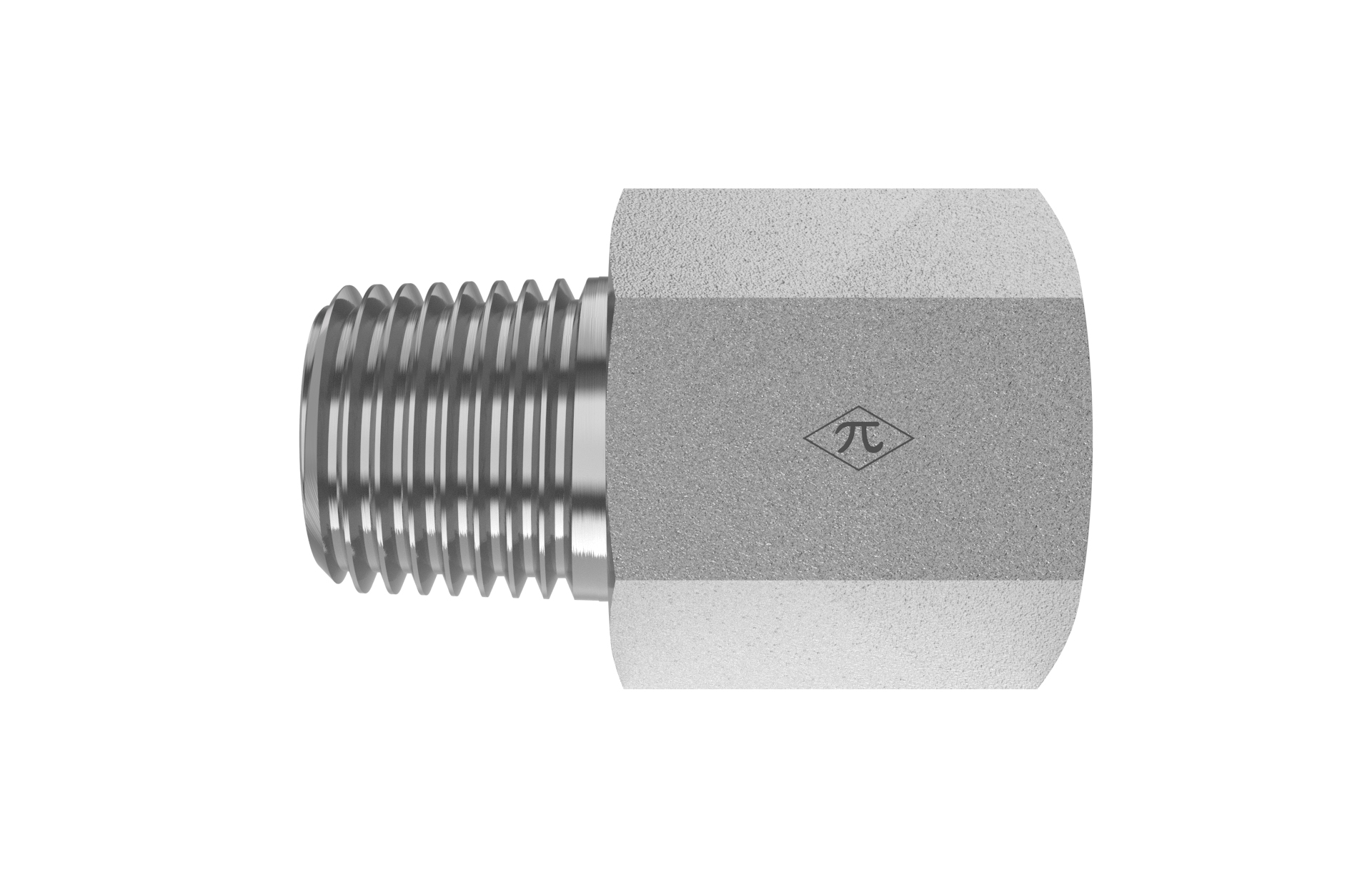

5405-24-20

1-1/2" Male NPTF 30° x 1-1/4" Female NPTF

5405-24-20 is a 1-1/2" Male NPTF 30° x 1-1/4" Female NPTF in the 5405 Series. For connecting a smaller male pipe end to a larger female pipe end.

  • Steel
  • Trivalent Zinc
  • Adapter
$16.44
(0) Write a Review

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection B
TypeFemale NPTF
Pipe Size1-1/4"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdapter
Weight0.96 lb
Cross References
Aeroquip2040-24-20S
Parker1 1/4 X 1 1/2 FG-S
SAE Ref.SAE J514 20-24 140139C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
