HGW HYDRAULICS

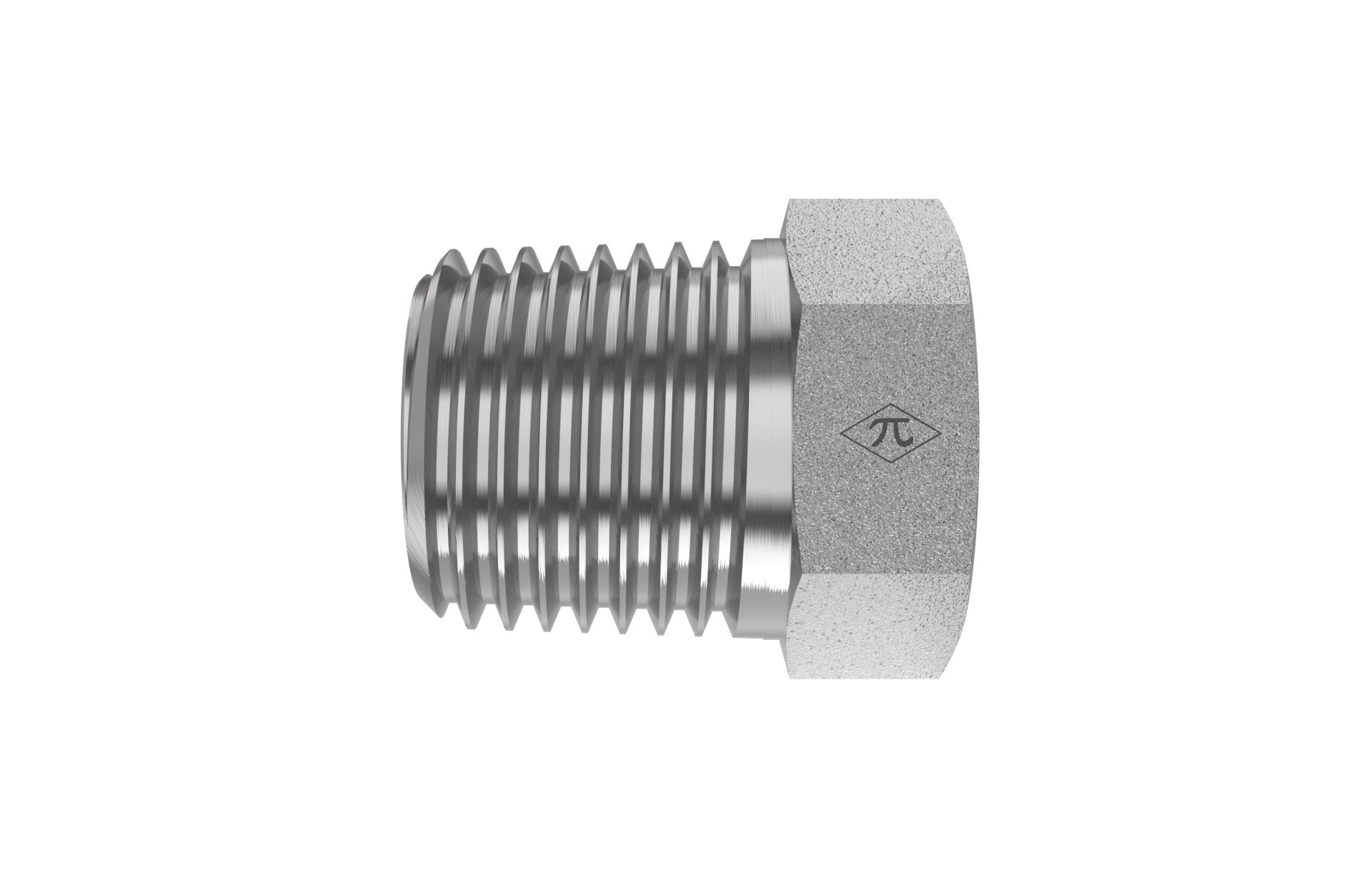

5406-16-02-SS

1" Male NPTF x 1/8" Female NPTF

5406-16-02-SS is a 1" Male NPTF x 1/8" Female NPTF in the 5406 Series. For reducing or expanding between two pipe ends of different sizes without requiring pipe sealant.

  • Stainless Steel
  • Reducer Bushing
  • None
$115.05
(0) Write a Review

Product Details

Connection A
TypeMale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection B
TypeFemale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeReducer Bushing
Weight0.50 lb
PlatingNone
Cross References
Aeroquip259-2081-16-2
Parker1 X 1/8 PTR-SS
SAE Ref.SAE J514 16-2 140140S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
