HGW HYDRAULICS

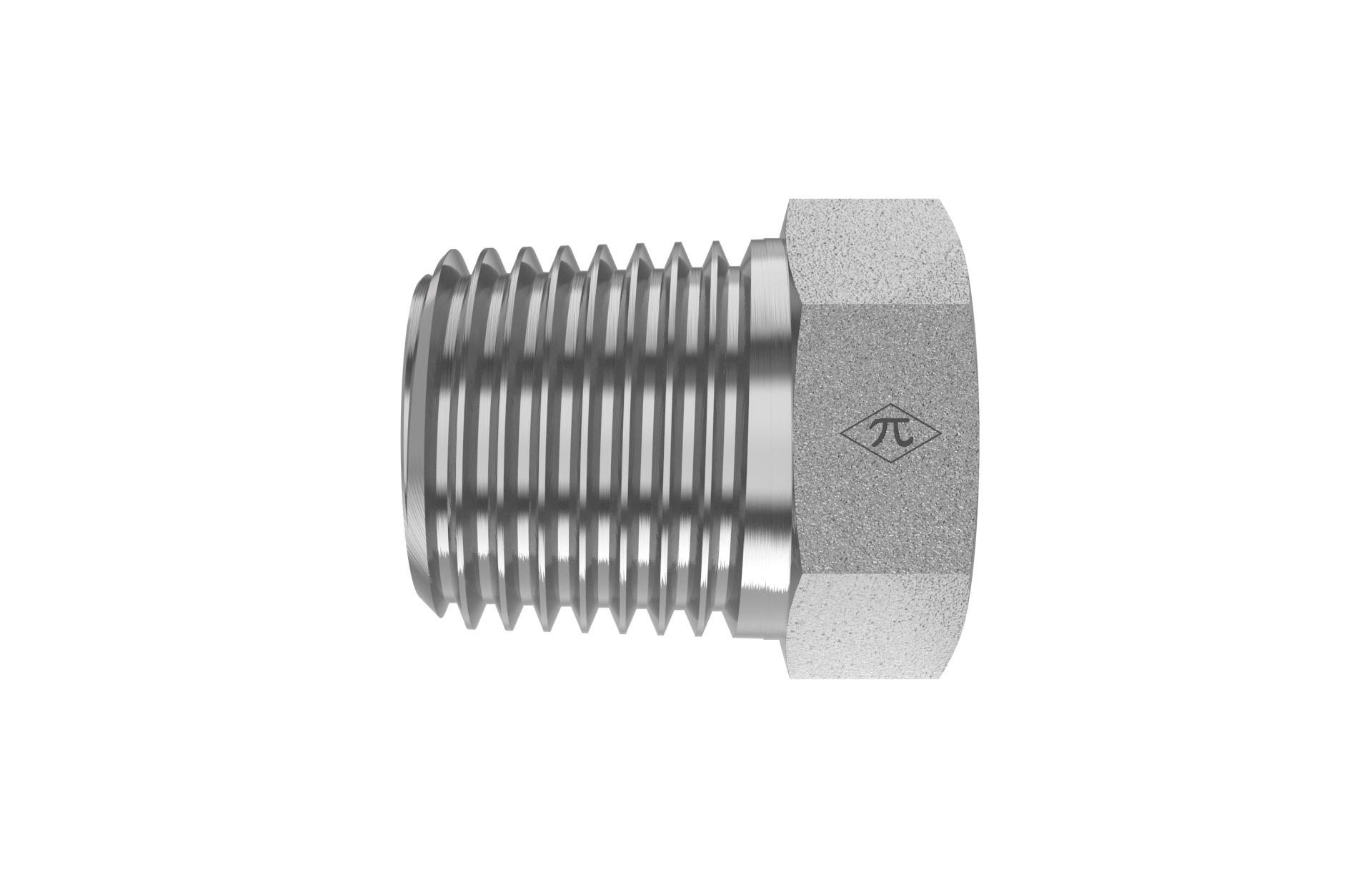

5406-24-04

1-1/2" Male NPTF x 1/4" Female NPTF

5406-24-04 is a 1-1/2" Male NPTF x 1/4" Female NPTF in the 5406 Series. For reducing or expanding between two pipe ends of different sizes without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Reducer Bushing
$18.33
(0) Write a Review

Product Details

Connection A
TypeMale NPTF
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection B
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeReducer Bushing
Weight1.20 lb
Cross References
Aeroquip2081-24-4S
Parker1 1/2 X 1/4 PTR-S
SAE Ref.SAE J514 24-4 140140C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
