5502-04-04

1/4" Male NPTF × 1/4" Female NPTF · Street Elbow

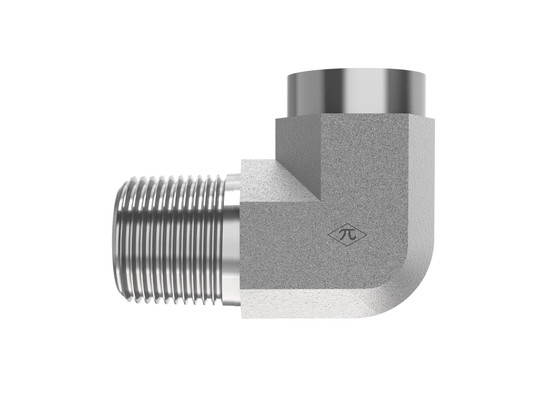

The HGW 5502-04-04-FG is a street elbow joining 1/4" male NPTF to 1/4" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Street Elbow
$3.03
(0) Write a Review
SKU:
5502-04-04

Product Details

Connection A
TypeMale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection B
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.16 lb
ShapeStreet Elbow
Cross References
Aeroquip2089-4-4S
Parker1/4 CD-S
SAE Ref.SAE J514 4-4 140239C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
