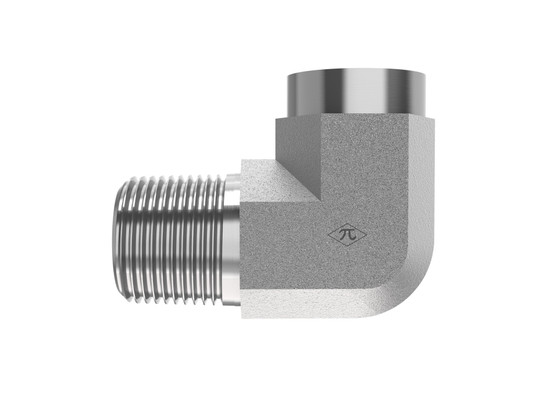

5502-FG series product image

5502-16-12-FG

1" Male NPTF 30° x 3/4" Female NPTF

5502-16-12-FG is a 1" Male NPTF 30° x 3/4" Female NPTF in the 5502-FG Series. For joining two pipe ends at a 90° angle without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Street Elbow
$9.72
(0) Write a Review
SKU:
5502-16-12-FG

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection B
TypeFemale NPTF
Pipe Size3/4"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.63 lb
ShapeStreet Elbow
Cross References
Aeroquip2089-16-12S
Parker1 X 3/4 CD-S
SAE Ref.SAE J514 12-16 140239C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
