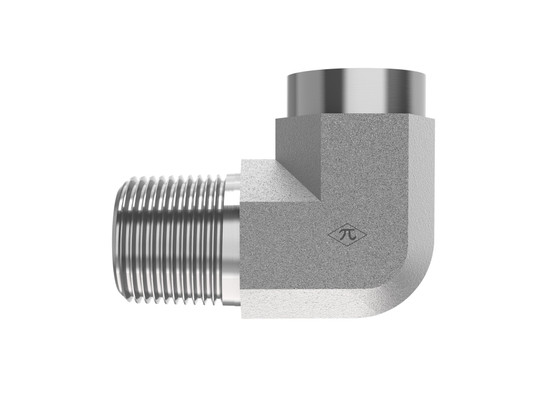

5502-FG series product image

5502-24-20

1-1/2" Male NPTF × 1-1/4" Female NPTF · Street Elbow

The HGW 5502-24-20-FG is a street elbow joining 1-1/2" male NPTF to 1-1/4" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Street Elbow
$92.50
(0) Write a Review
SKU:
5502-24-20

Product Details

Connection A
TypeMale NPTF
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection B
TypeFemale NPTF
Pipe Size1-1/4"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1.35 lb
ShapeStreet Elbow
Cross References
Aeroquip2089-24-20S
Parker1 1/2 X 1 1/4 CD-S
SAE Ref.SAE J514 20-24 140239C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
