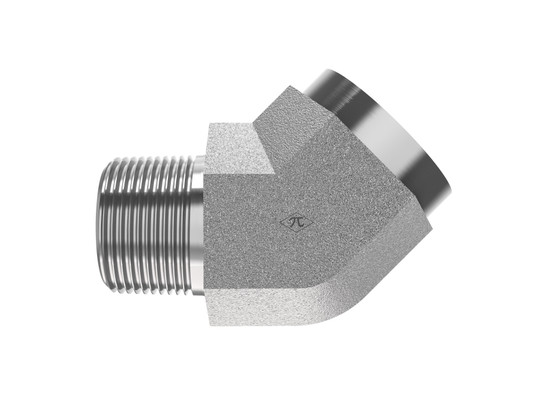

5503-FG series product image

5503-04-04-FG

1/4" Male NPTF 30° x 1/4" Female NPTF

5503-04-04-FG is a 1/4" Male NPTF 30° x 1/4" Female NPTF in the 5503-FG Series. For joining two pipe ends at a 45° angle without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Street Elbow
$3.14
(0) Write a Review
SKU:
5503-04-04-FG

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection B
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.13 lb
ShapeStreet Elbow
Cross References
Aeroquip2088-4-4S
Parker1/4 CD45-S
SAE Ref.SAE J514 4-4 140339C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
