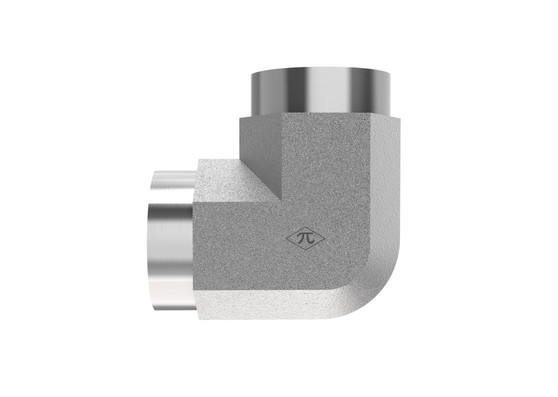

5504-FG series product image

5504-08-04-SS

1/2" Female NPTF x 1/4" Female NPTF

5504-08-04-SS is a 1/2" Female NPTF x 1/4" Female NPTF in the 5504-FG Series. For joining two pipe ends at a 90° angle without requiring pipe sealant.

  • Stainless Steel
  • Female Elbow
  • None
$240.28
(0) Write a Review
SKU:
5504-08-04-SS

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection B
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight1.04 lb
ShapeFemale Elbow
PlatingNone
Cross References
Aeroquip259-2087-8-4
Parker1/2 X 1/4 DD-SS
SAE Ref.SAE J514 8-4 140238S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
