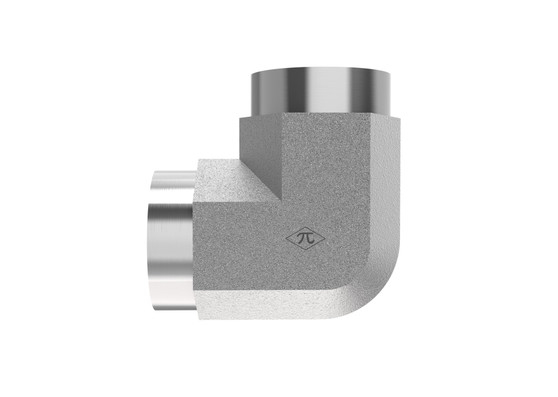

5504-FG series product image

5504-12-04-SS

3/4" Female NPTF × 1/4" Female NPTF · Female Elbow

The HGW 5504-12-04-SS is a female elbow joining 3/4" female NPTF to 1/4" female NPTF. Made from stainless steel, it uses SAE J476 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Female Elbow
$281.20
(0) Write a Review
SKU:
5504-12-04-SS

Product Details

Connection A
TypeFemale NPTF
Pipe Size3/4"
StandardSAE J476
Thread Type3/4-14 NPTF
Connection B
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type3/4-14 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.49 lb
ShapeFemale Elbow
Cross References
Aeroquip259-2087-12-4
Parker3/4 X 1/4 DD-SS
SAE Ref.SAE J514 12-4 140238S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
