5504-24-24

1-1/2" Female NPTF × 1-1/2" Female NPTF · Female Elbow

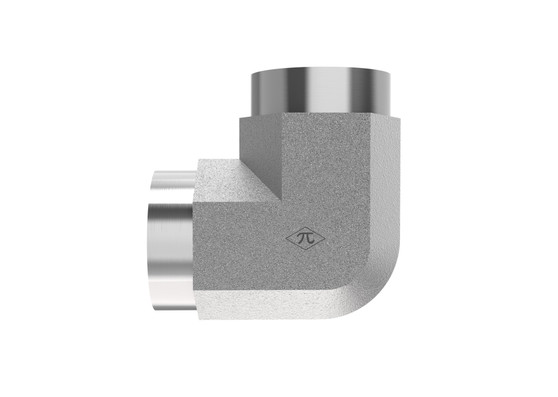

The HGW 5504-24-24-FG is a female elbow joining 1-1/2" female NPTF to 1-1/2" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Elbow
$60.98
(0) Write a Review
SKU:
5504-24-24

Product Details

Connection A
TypeFemale NPTF
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection B
TypeFemale NPTF
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight3.83 lb
ShapeFemale Elbow
Cross References
Aeroquip2087-24-24S
Parker1 1/2 DD-S
SAE Ref.SAE J514 24-24 140238C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
