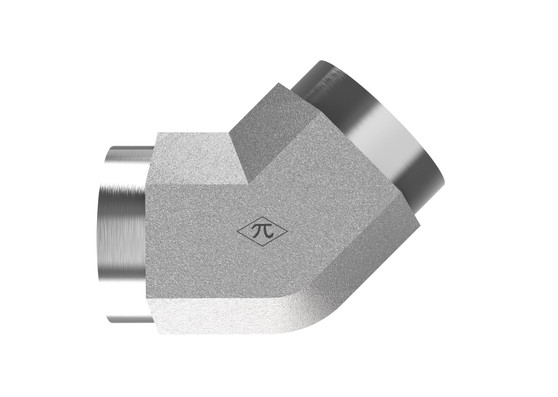

5505-FG series product image

5505-16-16-SS

1" Female NPTF × 1" Female NPTF · Female Elbow

The HGW 5505-16-16-SS is a female elbow joining 1" female NPTF to 1" female NPTF. Made from stainless steel, it uses SAE J476 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Female Elbow
$160.34
(0) Write a Review
SKU:
5505-16-16-SS

Product Details

Connection A
TypeFemale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection B
TypeFemale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.73 lb
ShapeFemale Elbow
Cross References
Aeroquip259-2086-16-16
Parker1 DD45-SS
SAE Ref.SAE J514 16-16 140338S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
