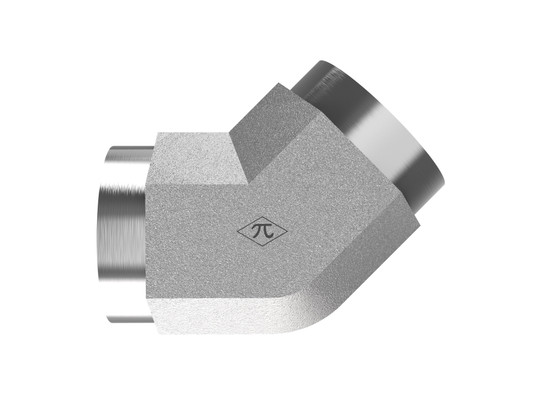

5505-FG series product image

5505-20-20-SS

1-1/4" Female NPTF × 1-1/4" Female NPTF · Female Elbow

The HGW 5505-20-20-SS is a female elbow joining 1-1/4" female NPTF to 1-1/4" female NPTF. Made from stainless steel, it uses SAE J476 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Female Elbow
$799.75
(0) Write a Review
SKU:
5505-20-20-SS

Product Details

Connection A
TypeFemale NPTF
Pipe Size1-1/4"
StandardSAE J476
Thread Type1-1/4-11-1/2 NPTF
Connection B
TypeFemale NPTF
Pipe Size1-1/4"
StandardSAE J476
Thread Type1-1/4-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.94 lb
ShapeFemale Elbow
Cross References
Aeroquip259-2086-20-20
Parker1 1/4 DD45-SS
SAE Ref.SAE J514 20-20 140338S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
