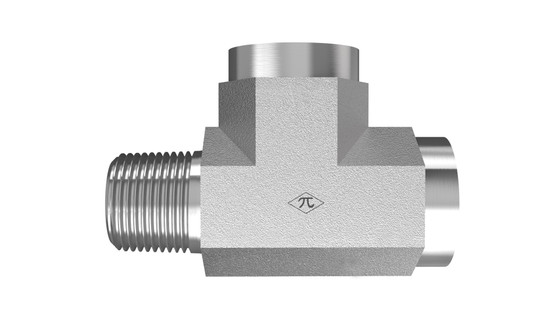

5602-FG series product image

5602-04-04-04-FG

1/4" Male NPTF 30° x 1/4" Female NPTF x 1/4" Female NPTF

5602-04-04-04-FG is a 1/4" Male NPTF 30° x 1/4" Female NPTF x 1/4" Female NPTF in the 5602-FG Series. For joining three pipe ends without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Run Tee
$3.93
(0) Write a Review
SKU:
5602-04-04-04-FG

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection B
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection C
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.19 lb
ShapeMale Run Tee
Cross References
Aeroquip2092-4-4S
Parker1/4 MRO-S
SAE Ref.SAE J514 4-4-4 140424C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
