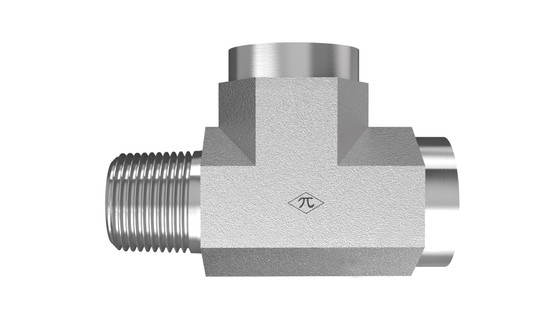

5602-FG series product image

5602-06-06-06-B

3/8" Male NPTF 30° x 3/8" Female NPTF x 3/8" Female NPTF

5602-06-06-06-B is a 3/8" Male NPTF 30° x 3/8" Female NPTF x 3/8" Female NPTF in the 5602-FG Series. For joining three pipe ends without requiring pipe sealant.

  • Brass
  • Natural Finish
  • Male Run Tee
$13.03
(0) Write a Review
SKU:
5602-06-06-06-B

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection B
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection C
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection D
Specifications
MaterialBrass
Weight0.28 lb
PlatingNatural Finish
ShapeMale Run Tee
Cross References
Aeroquip2092-6-6B
Parker3/8 MRO-B
SAE Ref.SAE J514 6-6-6 140424B

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
