5602-24-24-24-FG

1-1/2" Male NPTF 30° x 1-1/2" Female NPTF x 1-1/2" Female NPTF

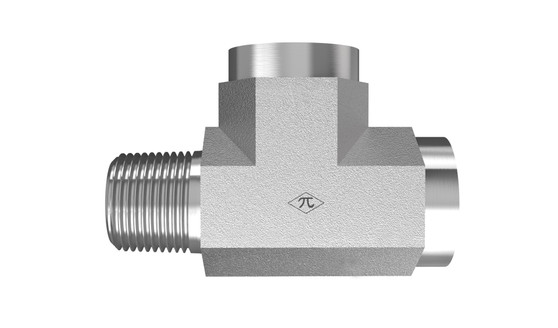

5602-24-24-24-FG is a 1-1/2" Male NPTF 30° x 1-1/2" Female NPTF x 1-1/2" Female NPTF in the 5602-FG Series. For joining three pipe ends without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Run Tee
$121.08
(0) Write a Review
SKU:
5602-24-24-24-FG

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection B
TypeFemale NPTF
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection C
TypeFemale NPTF
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight4.26 lb
ShapeMale Run Tee
Cross References
Aeroquip2092-24-24S
Parker1 1/2 MRO-S
SAE Ref.SAE J514 24-24-24 140424C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
