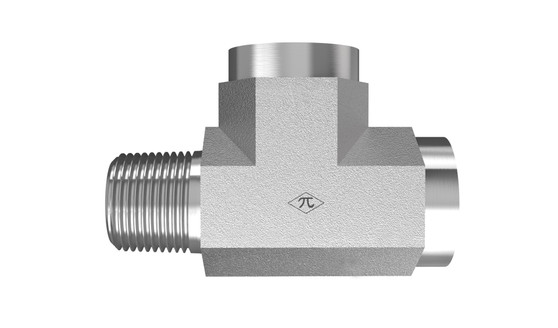

5602-FG series product image

5602-24-24-24-SS

1-1/2" Male NPTF 30° x 1-1/2" Female NPTF x 1-1/2" Female NPTF

5602-24-24-24-SS is a 1-1/2" Male NPTF 30° x 1-1/2" Female NPTF x 1-1/2" Female NPTF in the 5602-FG Series. For joining three pipe ends without requiring pipe sealant.

  • Stainless Steel
  • Male Run Tee
  • None
$517.24
(0) Write a Review
SKU:
5602-24-24-24-SS

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection B
TypeFemale NPTF
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection C
TypeFemale NPTF
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection D
Specifications
MaterialStainless Steel
Weight4.18 lb
ShapeMale Run Tee
PlatingNone
Cross References
Aeroquip259-2092-24-24
Parker1 1/2 MRO-SS
SAE Ref.SAE J514 24-24-24 140424S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
