5652-04-04-04-04

1/4" Female NPTF × 1/4" Female NPTF × 1/4" Female NPTF × 1/4" Female NPTF · Female Cross

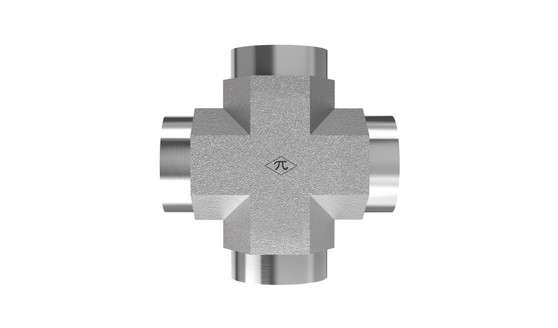

The HGW 5652-04-04-04-04-FG is a female cross joining 1/4" female NPTF connections across all 4 ports. Made from trivalent-zinc-plated steel, it uses SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Cross
$10.23
(0) Write a Review
SKU:
5652-04-04-04-04

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection B
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection C
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection D
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.23 lb
ShapeFemale Cross
Cross References
Aeroquip2080-4-4S
Parker1/4 KMMOO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
