5652-06-06-06-06

3/8" Female NPTF × 3/8" Female NPTF × 3/8" Female NPTF × 3/8" Female NPTF · Female Cross

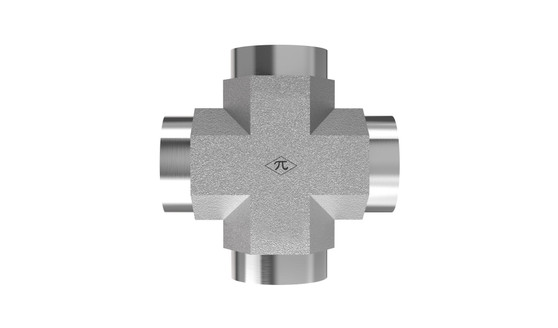

The HGW 5652-06-06-06-06-FG is a female cross joining 3/8" female NPTF connections across all 4 ports. Made from trivalent-zinc-plated steel, it uses SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Cross
$11.76
(0) Write a Review
SKU:
5652-06-06-06-06

Product Details

Connection A
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection B
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection C
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection D
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.34 lb
ShapeFemale Cross
Cross References
Aeroquip2080-6-6S
Parker3/8 KMMOO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
