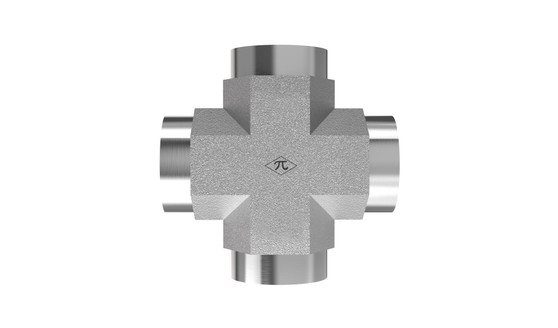

5652-FG series product image

5652-08-08-08-08

1/2" Female NPTF × 1/2" Female NPTF × 1/2" Female NPTF × 1/2" Female NPTF · Female Cross

The HGW 5652-08-08-08-08-FG is a female cross joining 1/2" female NPTF connections across all 4 ports. Made from trivalent-zinc-plated steel, it uses SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Cross
$14.08
(0) Write a Review
SKU:
5652-08-08-08-08

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection B
TypeFemale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection C
TypeFemale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection D
TypeFemale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.56 lb
ShapeFemale Cross
Cross References
Aeroquip2080-8-8S
Parker1/2 KMMOO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
