HGW HYDRAULICS

6316-12

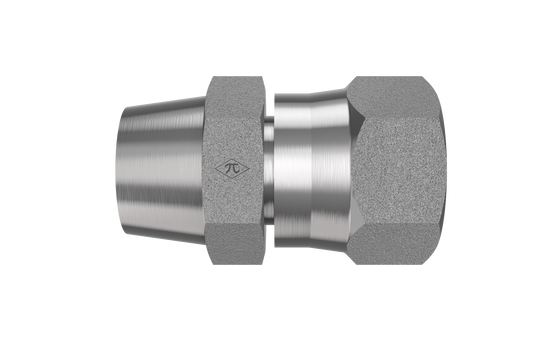

3/4" Female JIC Swivel x 3/4" Buttweld

6316-12 is a 3/4" Female JIC Swivel x 3/4" Buttweld in the 6316 Series. For permanently joining a JIC swivel line to a tube via buttweld.

  • Steel
  • Trivalent Zinc
  • Swivel Connector
$9.93
(0) Write a Review

Product Details

Connection A
TypeFemale JIC Swivel
Tube OD3/4"
StandardSAE J514 - Class 2B Thread
Thread Type1-1/16-12 UN
Connection B
TypeButtweld
StandardNot defined
Size3/4"
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Connector
Weight0.27 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
