HGW HYDRAULICS

6316-20-SS

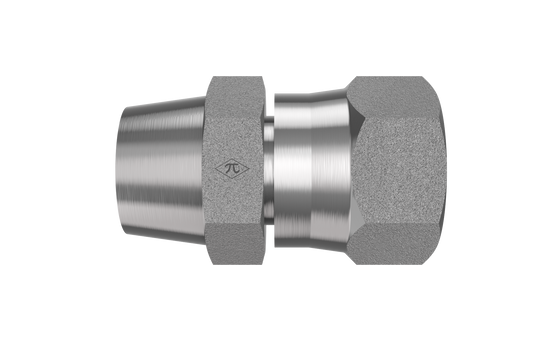

1-1/4" Female JIC Swivel x 1-1/4" Buttweld

6316-20-SS is a 1-1/4" Female JIC Swivel x 1-1/4" Buttweld in the 6316 Series. For permanently joining a JIC swivel line to a tube via buttweld.

  • Stainless Steel
  • Swivel Connector
  • None
$329.00
(0) Write a Review

Product Details

Connection A
TypeFemale JIC Swivel
Tube OD1-1/4"
StandardSAE J514 - Class 2B Thread
Thread Type1-5/8-12 UN
Connection B
TypeButtweld
StandardNot defined
Size1-1/4"
Thread Type1-5/8-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Connector
Weight0.82 lb
PlatingNone
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
