HGW HYDRAULICS

6316-20

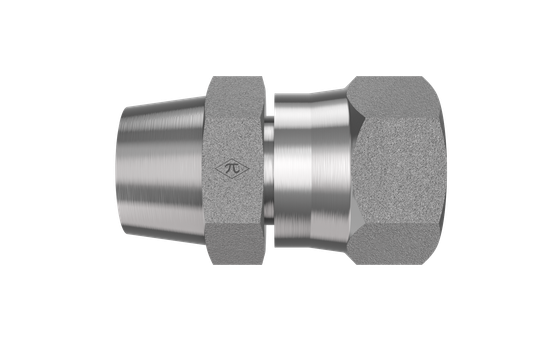

1-1/4" Female JIC Swivel x 1-1/4" Buttweld

6316-20 is a 1-1/4" Female JIC Swivel x 1-1/4" Buttweld in the 6316 Series. For permanently joining a JIC swivel line to a tube via buttweld.

  • Steel
  • Trivalent Zinc
  • Swivel Connector
$20.09
(0) Write a Review

Product Details

Connection A
TypeFemale JIC Swivel
Tube OD1-1/4"
StandardSAE J514 - Class 2B Thread
Thread Type1-5/8-12 UN
Connection B
TypeButtweld
StandardNot defined
Size1-1/4"
Thread Type1-5/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Connector
Weight0.77 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
