6401-02-02-O

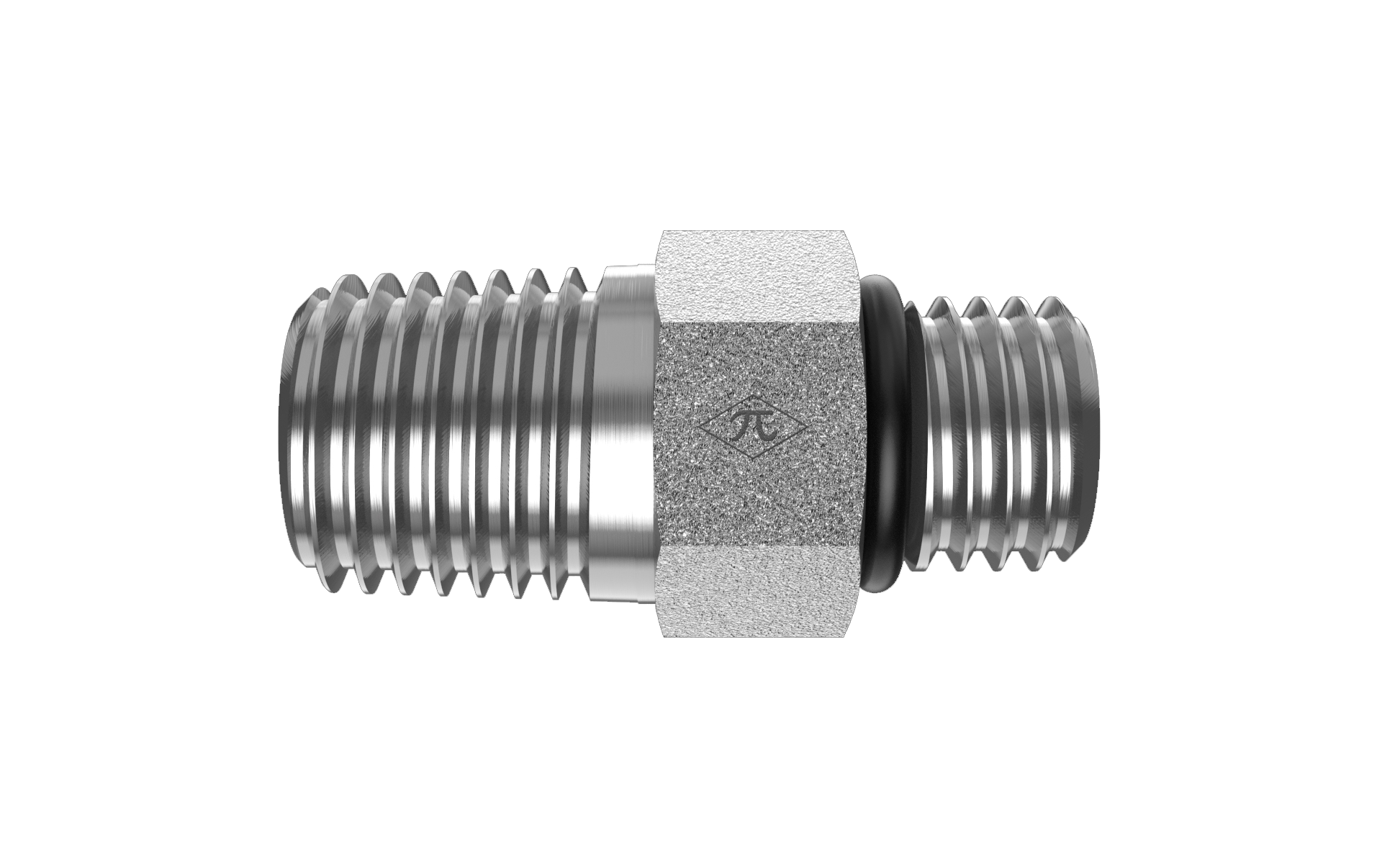

5/16-24 Male ORB × 1/8" Male NPTF · Adapter Nipple

The HGW 6401-02-02-O is an adapter nipple joining 5/16-24 male ORB to 1/8" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adapter Nipple
$7.02
(0) Write a Review
SKU:
6401-02-02-O

Product Details

Connection A
TypeMale ORB
Port Size5/16-24
StandardSAE J1926
Thread Type5/16-24 UNF
Size5/16-24
Connection B
TypeMale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type5/16-24 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.03 lb
ShapeAdapter Nipple
Cross References
AeroquipFF1796-0202S
Parker2-1/8 F5OF-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
