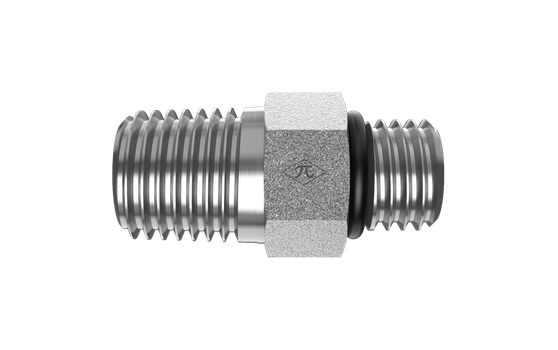

Google Merchant product image

6401-04-02-O

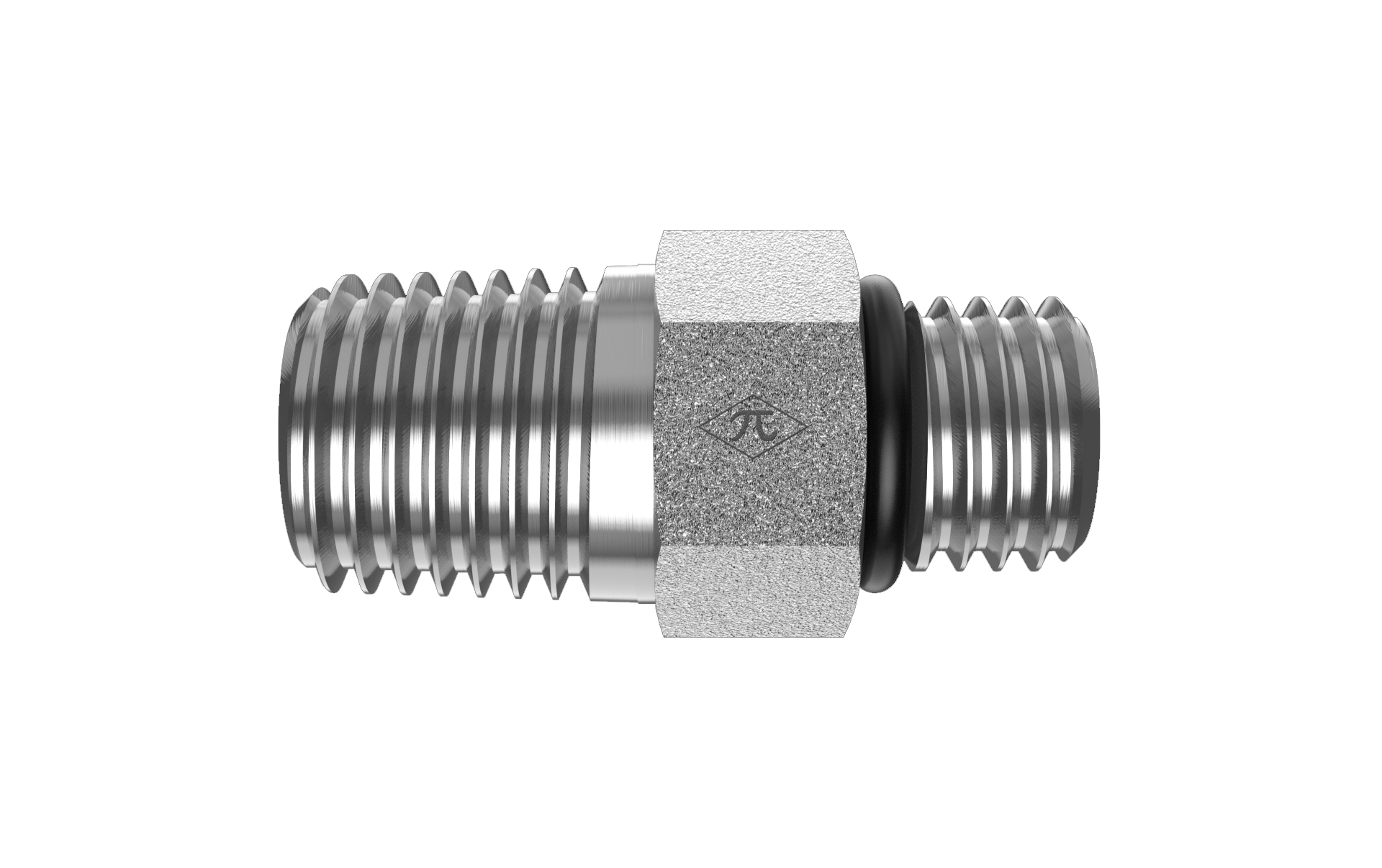

7/16-20 Male ORB × 1/8" Male NPTF · Adapter Nipple

The HGW 6401-04-02-O is an adapter nipple joining 7/16-20 male ORB to 1/8" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adapter Nipple
$1.90
(0) Write a Review
SKU:
6401-04-02-O

Product Details

Connection A
TypeMale ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Size7/16-20
Connection B
TypeMale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.04 lb
ShapeAdapter Nipple
Cross References
AeroquipFF1796-0402S
Parker4-1/8 F5OF-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
