6401-04-04-O-SS

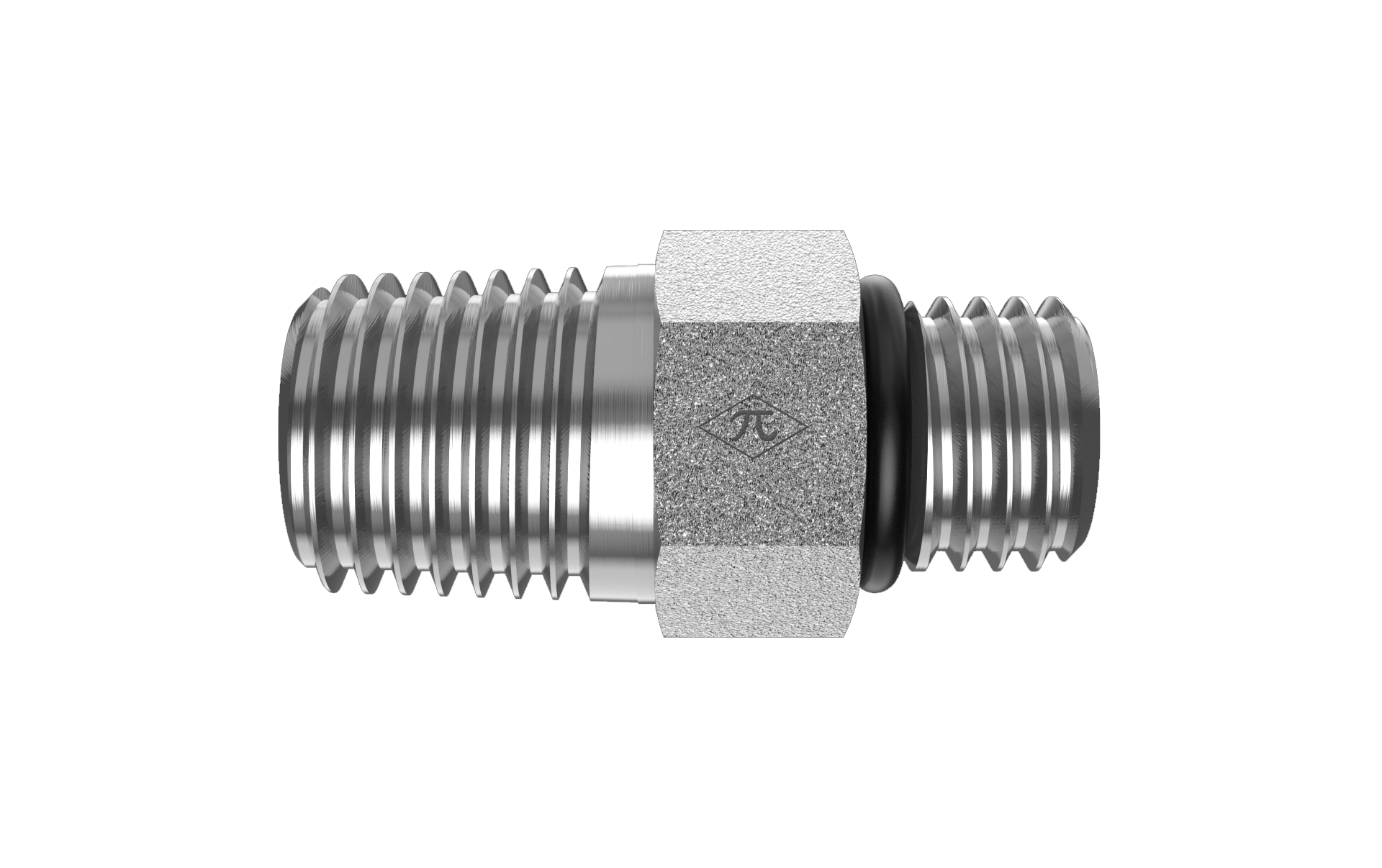

7/16-20 Male ORB × 1/4" Male NPTF · Adapter Nipple

The HGW 6401-04-04-O-SS is an adapter nipple joining 7/16-20 male ORB to 1/4" male NPTF. Made from stainless steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Adapter Nipple
$74.98
(0) Write a Review
SKU:
6401-04-04-O-SS

Product Details

Connection A
TypeMale ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Size7/16-20
Connection B
TypeMale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.06 lb
ShapeAdapter Nipple
Cross References
Aeroquip259-FF1796-0404
Parker4-1/4 F5OF-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
