6401-06-02-O

9/16-18 Male ORB x 1/8" Male NPTF 30°

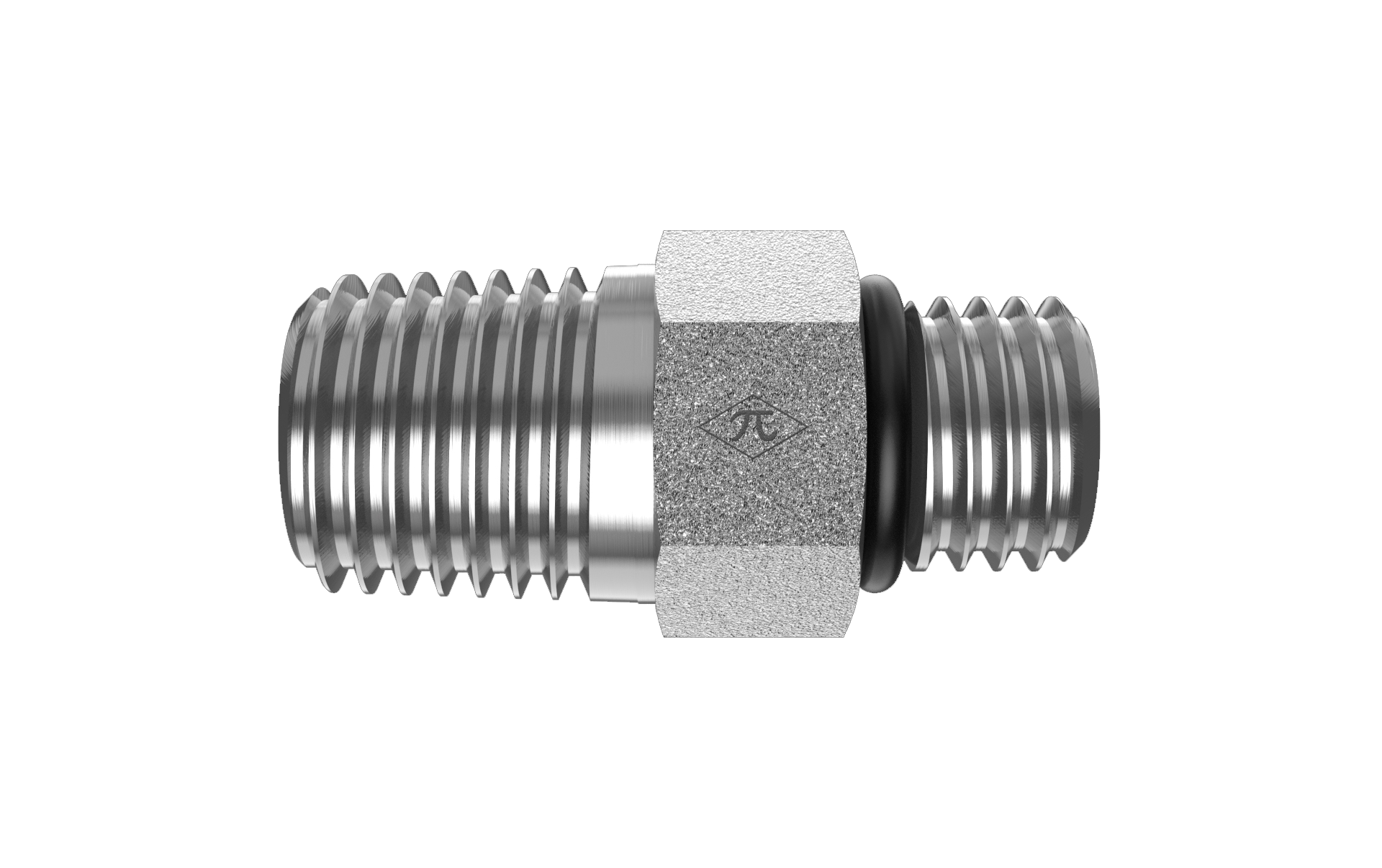

6401-06-02-O is a 9/16-18 Male ORB x 1/8" Male NPTF 30° in the 6401-O Series. For connecting SAE port to pipe without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Adapter Nipple
$13.29
(0) Write a Review
SKU:
6401-06-02-O

Product Details

Connection A
TypeMale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Connection B
TypeMale NPTF 30°
Pipe Size1/8"
StandardSAE J476
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.06 lb
ShapeAdapter Nipple
Cross References
AeroquipFF1796-0602S
Parker6-1/8 F5OF-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
