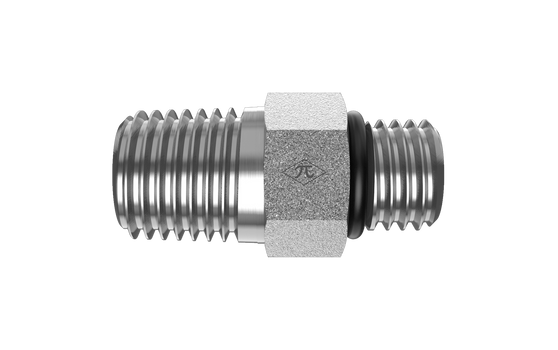

Google Merchant product image

6401-06-04-O

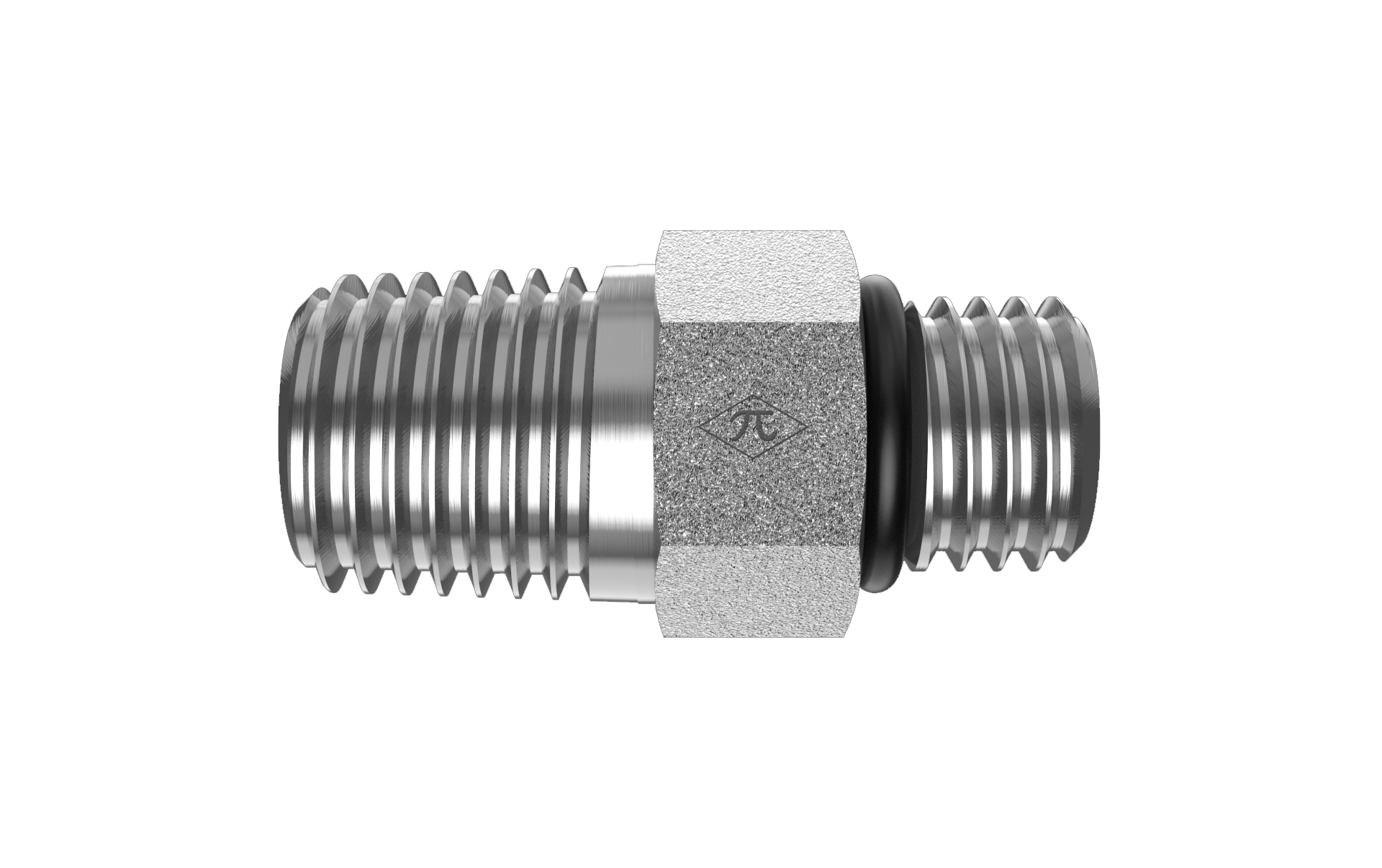

9/16-18 Male ORB × 1/4" Male NPTF · Adapter Nipple

The HGW 6401-06-04-O is an adapter nipple joining 9/16-18 male ORB to 1/4" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adapter Nipple
$2.27
(0) Write a Review
SKU:
6401-06-04-O

Product Details

Connection A
TypeMale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Size9/16-18
Connection B
TypeMale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.07 lb
ShapeAdapter Nipple
Cross References
AeroquipFF1796-0604S
Parker6-1/4 F5OF-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
