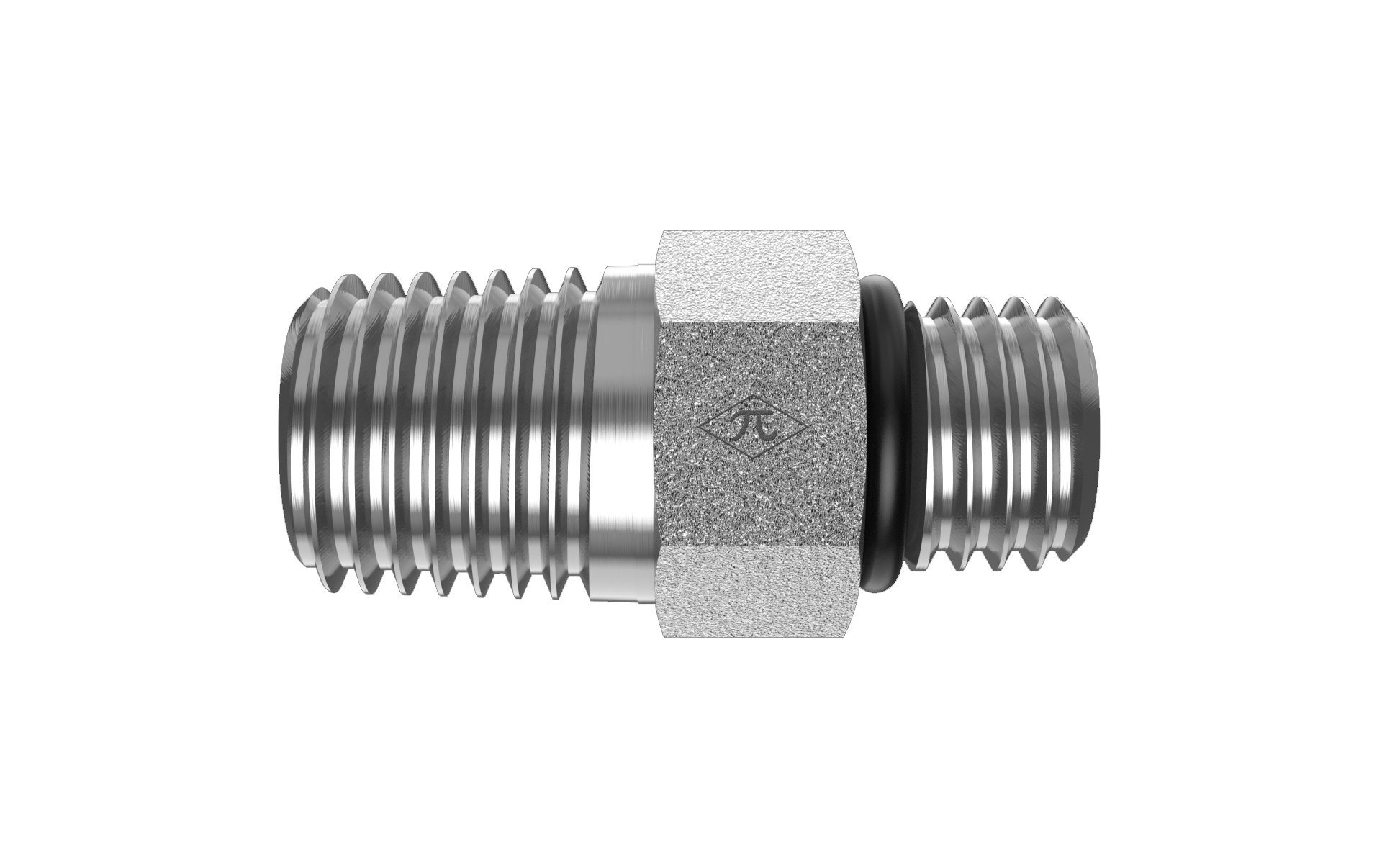

6401-08-04-O

3/4-16 Male ORB x 1/4" Male NPTF 30°

6401-08-04-O is a 3/4-16 Male ORB x 1/4" Male NPTF 30° in the 6401-O Series. For connecting SAE port to pipe without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Adapter Nipple
$3.16
(0) Write a Review
SKU:
6401-08-04-O

Product Details

Connection A
TypeMale ORB
Port Size3/4-16
StandardSAE J1926
Thread Type3/4-16 UNF
Connection B
TypeMale NPTF 30°
Pipe Size1/4"
StandardSAE J476
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.11 lb
ShapeAdapter Nipple
Cross References
AeroquipFF1796-0804S
Parker8-1/4 F5OF-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
