6401-08-08-O

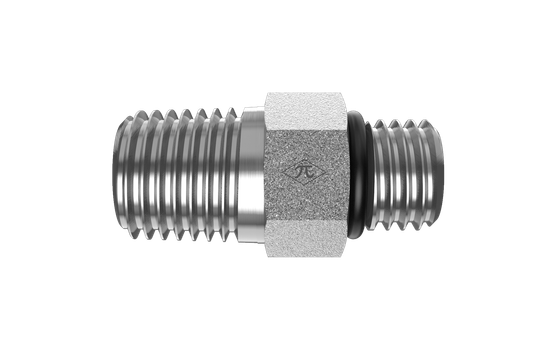

3/4-16 Male ORB × 1/2" Male NPTF · Adapter Nipple

The HGW 6401-08-08-O is an adapter nipple joining 3/4-16 male ORB to 1/2" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adapter Nipple
$2.88
(0) Write a Review
SKU:
6401-08-08-O

Product Details

Connection A
TypeMale ORB
Port Size3/4-16
StandardSAE J1926
Thread Type3/4-16 UNF
Size3/4-16
Connection B
TypeMale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.14 lb
ShapeAdapter Nipple
Cross References
AeroquipFF1796-0808S
Parker8-1/2 F5OF-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
