6401-12-16-O-VITON

1-1/16-12 Male ORB × 1" Male NPTF · Adapter Nipple

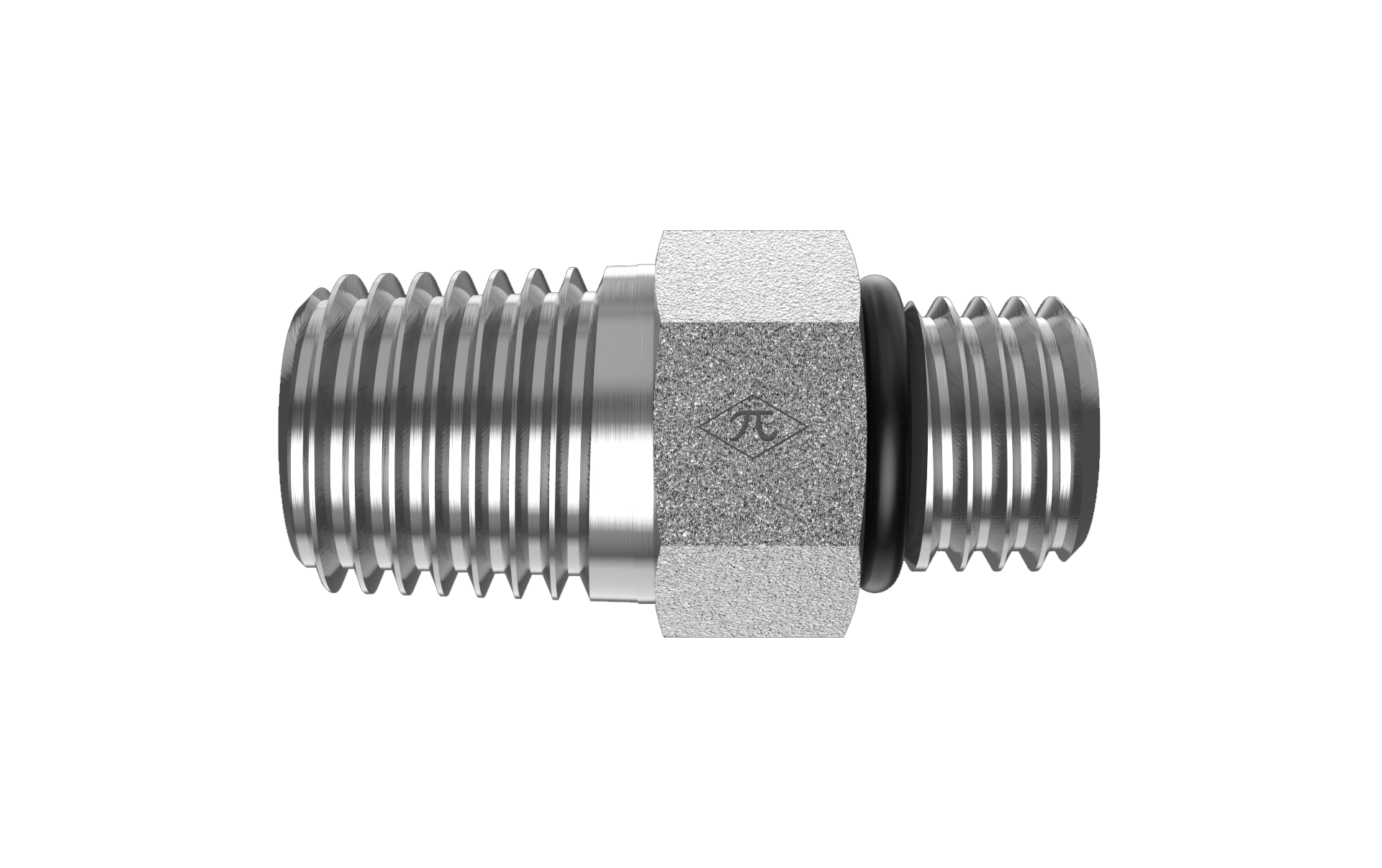

The HGW 6401-12-16-O-VITON is an adapter nipple joining 1-1/16-12 male ORB to 1" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adapter Nipple
$41.58
(0) Write a Review
SKU:
6401-12-16-O-VITON

Product Details

Connection A
TypeMale ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-1/16-12 UN
Size1-1/16-12
Connection B
TypeMale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.56 lb
ShapeAdapter Nipple
Cross References
Aeroquip213-FF1796-1216
Parker12-1 F5OF-S FKM

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
