6401-12-16-O

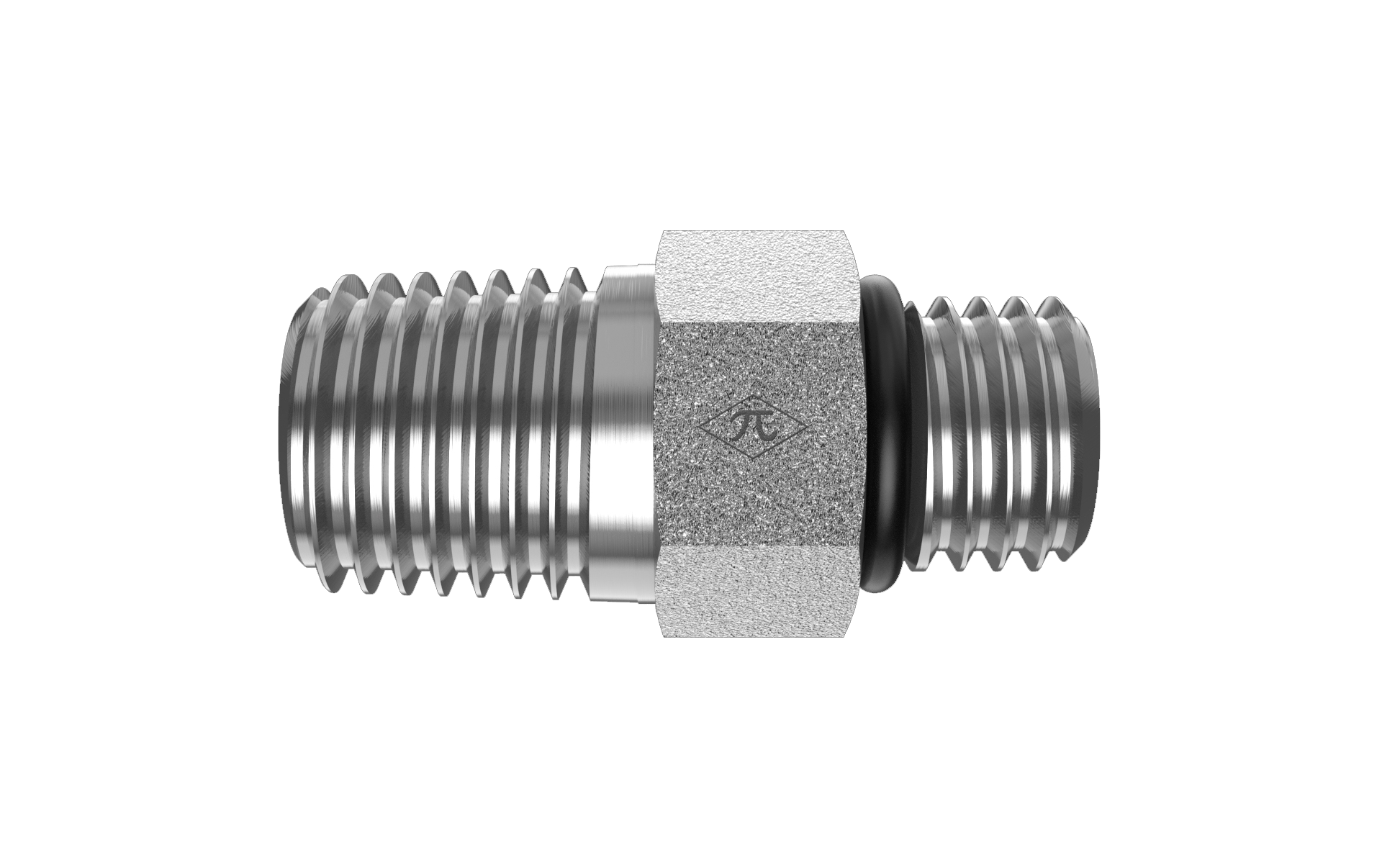

1-1/16-12 Male ORB × 1" Male NPTF · Adapter Nipple

The HGW 6401-12-16-O is an adapter nipple joining 1-1/16-12 male ORB to 1" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adapter Nipple
$6.84
(0) Write a Review
SKU:
6401-12-16-O

Product Details

Connection A
TypeMale ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-1/16-12 UN
Size1-1/16-12
Connection B
TypeMale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.42 lb
ShapeAdapter Nipple
Cross References
AeroquipFF1796-1216S
Parker12-1 F5OF-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
