6401-16-12-O-SS

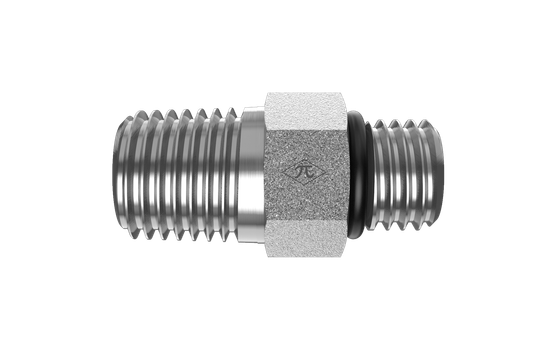

1-5/16-12 Male ORB × 3/4" Male NPTF · Adapter Nipple

The HGW 6401-16-12-O-SS is an adapter nipple joining 1-5/16-12 male ORB to 3/4" male NPTF. Made from stainless steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Adapter Nipple
$187.88
(0) Write a Review
SKU:
6401-16-12-O-SS

Product Details

Connection A
TypeMale ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Size1-5/16-12
Connection B
TypeMale NPTF
Pipe Size3/4"
StandardSAE J476
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.46 lb
ShapeAdapter Nipple
Cross References
Aeroquip259-FF1796-1612
Parker16-3/4 F5OF-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
