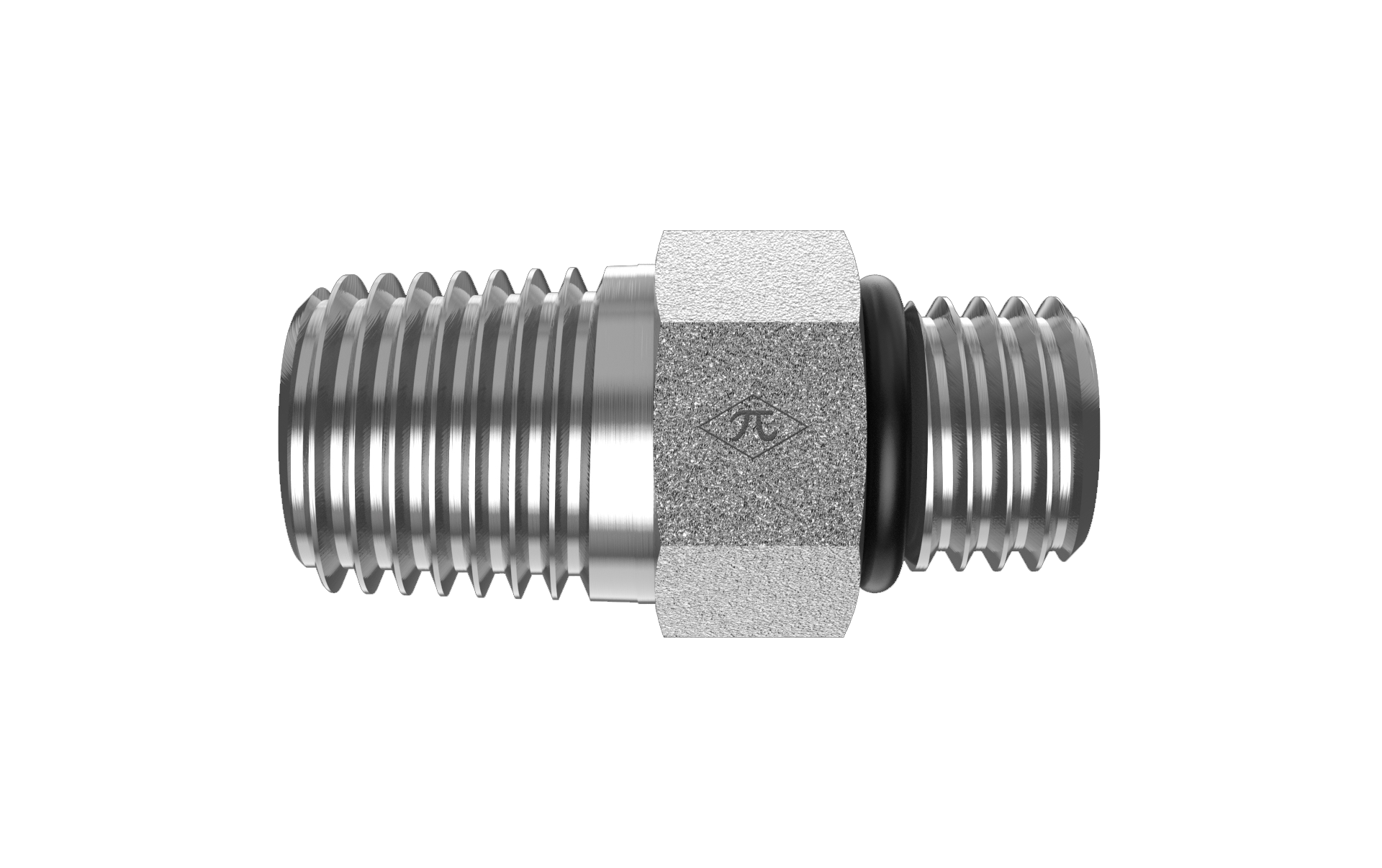

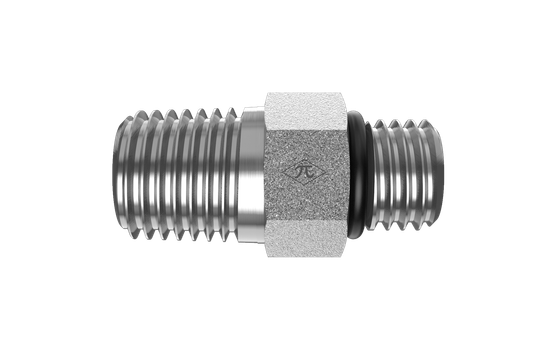

6401-20-20-O-VITON

1-5/8-12 Male ORB x 1-1/4" Male NPTF 30°

6401-20-20-O-VITON is a 1-5/8-12 Male ORB x 1-1/4" Male NPTF 30° in the 6401-O Series. For connecting SAE port to pipe without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Adapter Nipple
$39.02
(0) Write a Review
SKU:
6401-20-20-O-VITON

Product Details

Connection A
TypeMale ORB
Port Size1-5/8-12
StandardSAE J1926
Thread Type1-5/8-12 UN
Connection B
TypeMale NPTF 30°
Pipe Size1-1/4"
StandardSAE J476
Thread Type1-5/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.86 lb
ShapeAdapter Nipple
Cross References
Aeroquip213-FF1796-2020
Parker20-1 1/4 F5OF-S FKM

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
