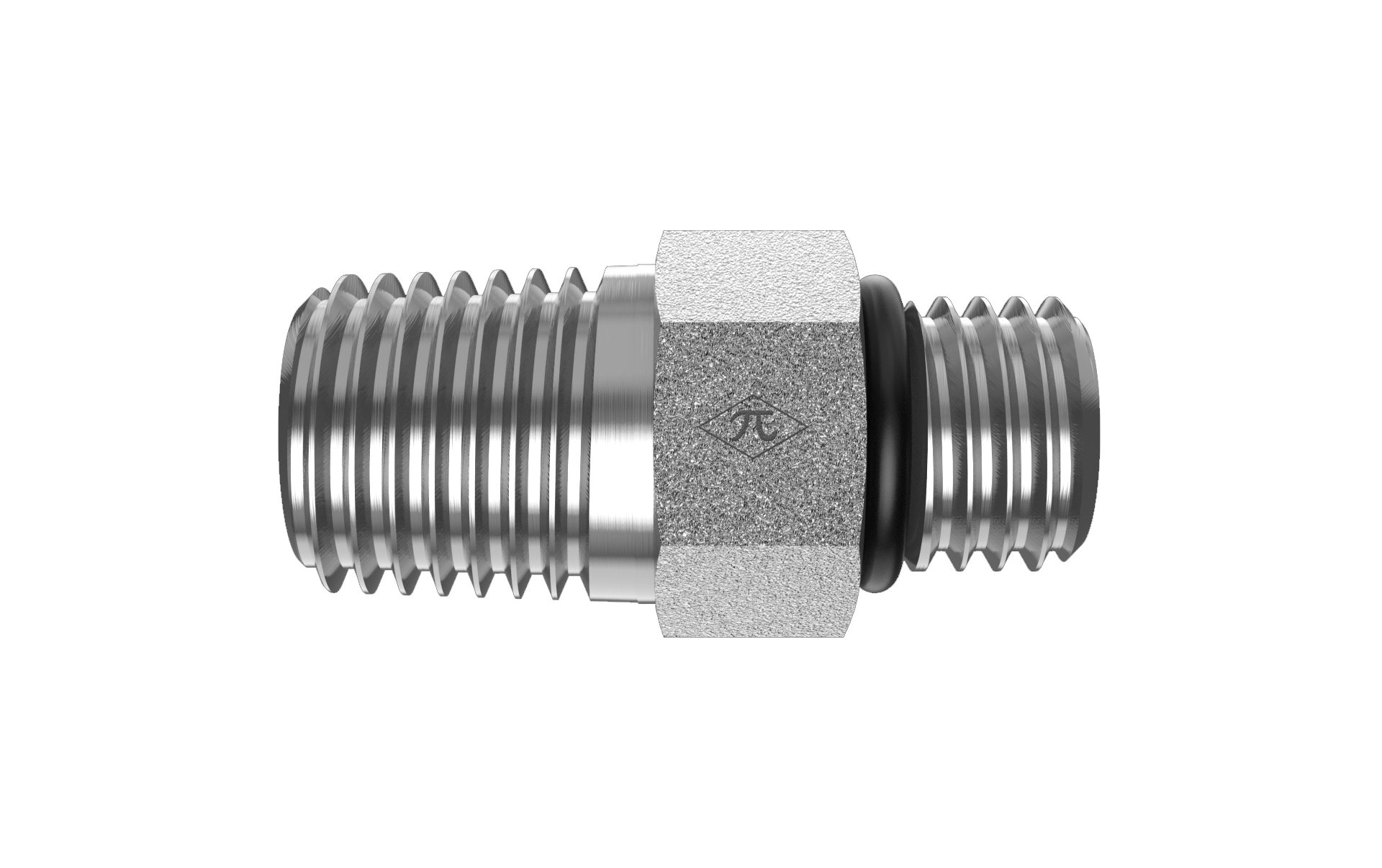

6401-24-16-O

1-7/8-12 Male ORB x 1" Male NPTF 30°

6401-24-16-O is a 1-7/8-12 Male ORB x 1" Male NPTF 30° in the 6401-O Series. For connecting SAE port to pipe without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Adapter Nipple
$52.18
(0) Write a Review
SKU:
6401-24-16-O

Product Details

Connection A
TypeMale ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Connection B
TypeMale NPTF 30°
Pipe Size1"
StandardSAE J476
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.90 lb
ShapeAdapter Nipple
Cross References
AeroquipFF1796-2416S
Parker24-1 F5OF-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
