6401-24-20-O

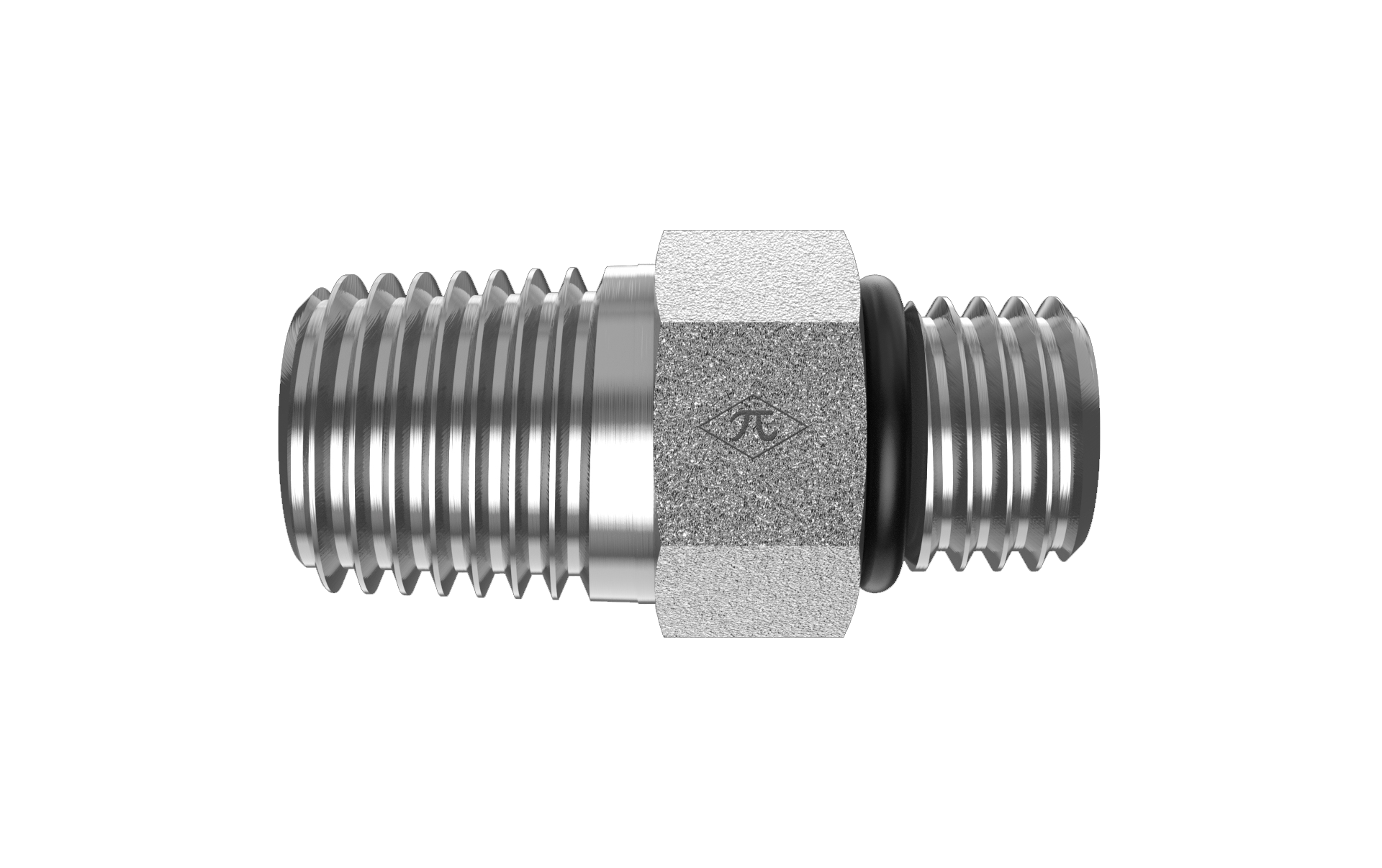

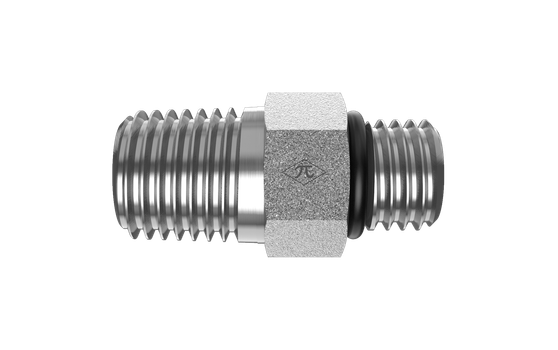

1-7/8-12 Male ORB × 1-1/4" Male NPTF · Adapter Nipple

The HGW 6401-24-20-O is an adapter nipple joining 1-7/8-12 male ORB to 1-1/4" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adapter Nipple
$36.44
(0) Write a Review
SKU:
6401-24-20-O

Product Details

Connection A
TypeMale ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Size1-7/8-12
Connection B
TypeMale NPTF
Pipe Size1-1/4"
StandardSAE J476
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.91 lb
ShapeAdapter Nipple
Cross References
AeroquipFF1796-2420S
Parker24-1 1/4 F5OF-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
