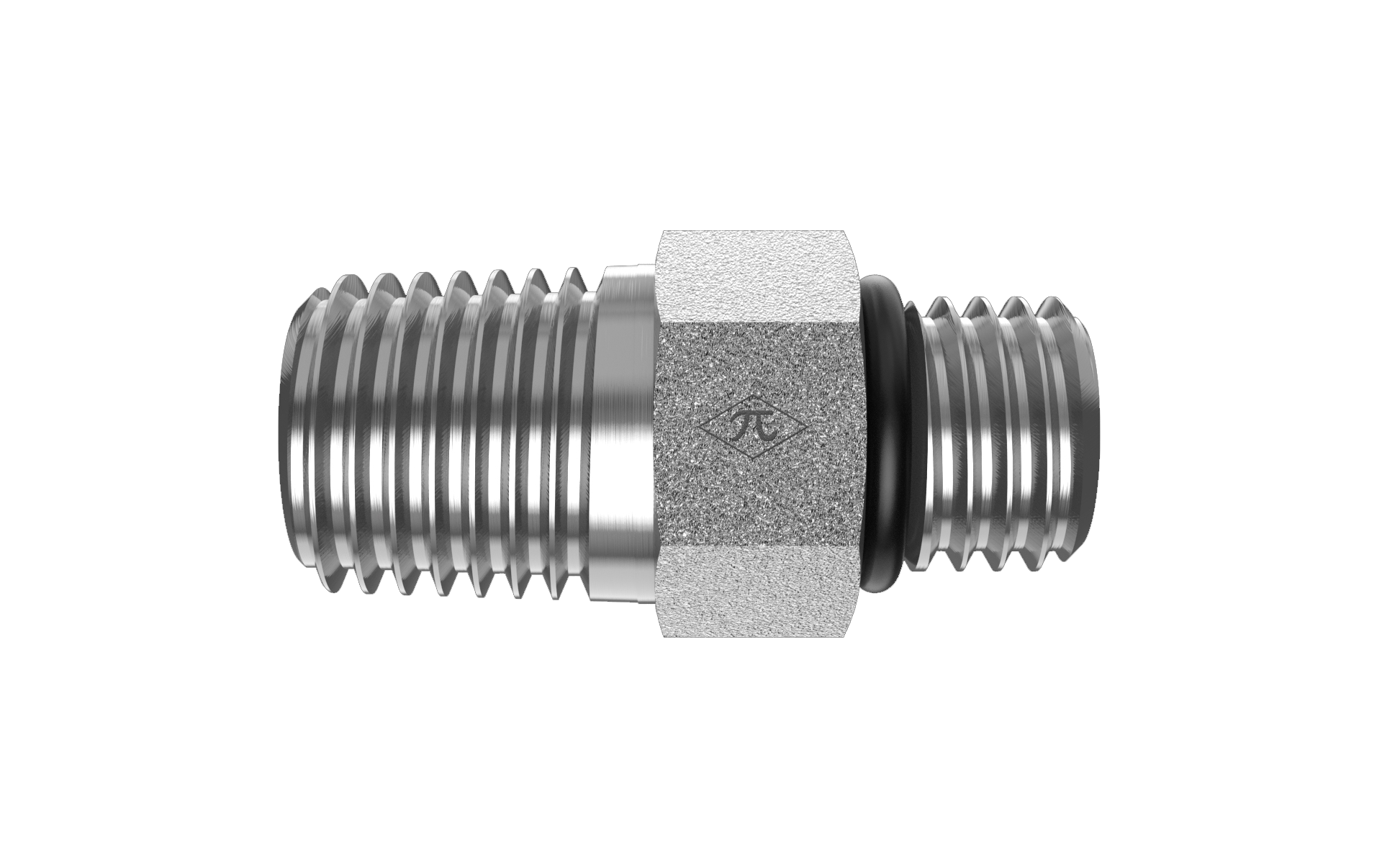

6401-24-24-O-VITON

1-7/8-12 Male ORB × 1-1/2" Male NPTF · Adapter Nipple

The HGW 6401-24-24-O-VITON is an adapter nipple joining 1-7/8-12 male ORB to 1-1/2" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adapter Nipple
$78.16
(0) Write a Review
SKU:
6401-24-24-O-VITON

Product Details

Connection A
TypeMale ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Size1-7/8-12
Connection B
TypeMale NPTF
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1.04 lb
ShapeAdapter Nipple
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
