HGW HYDRAULICS

6402-08-08-O-SS

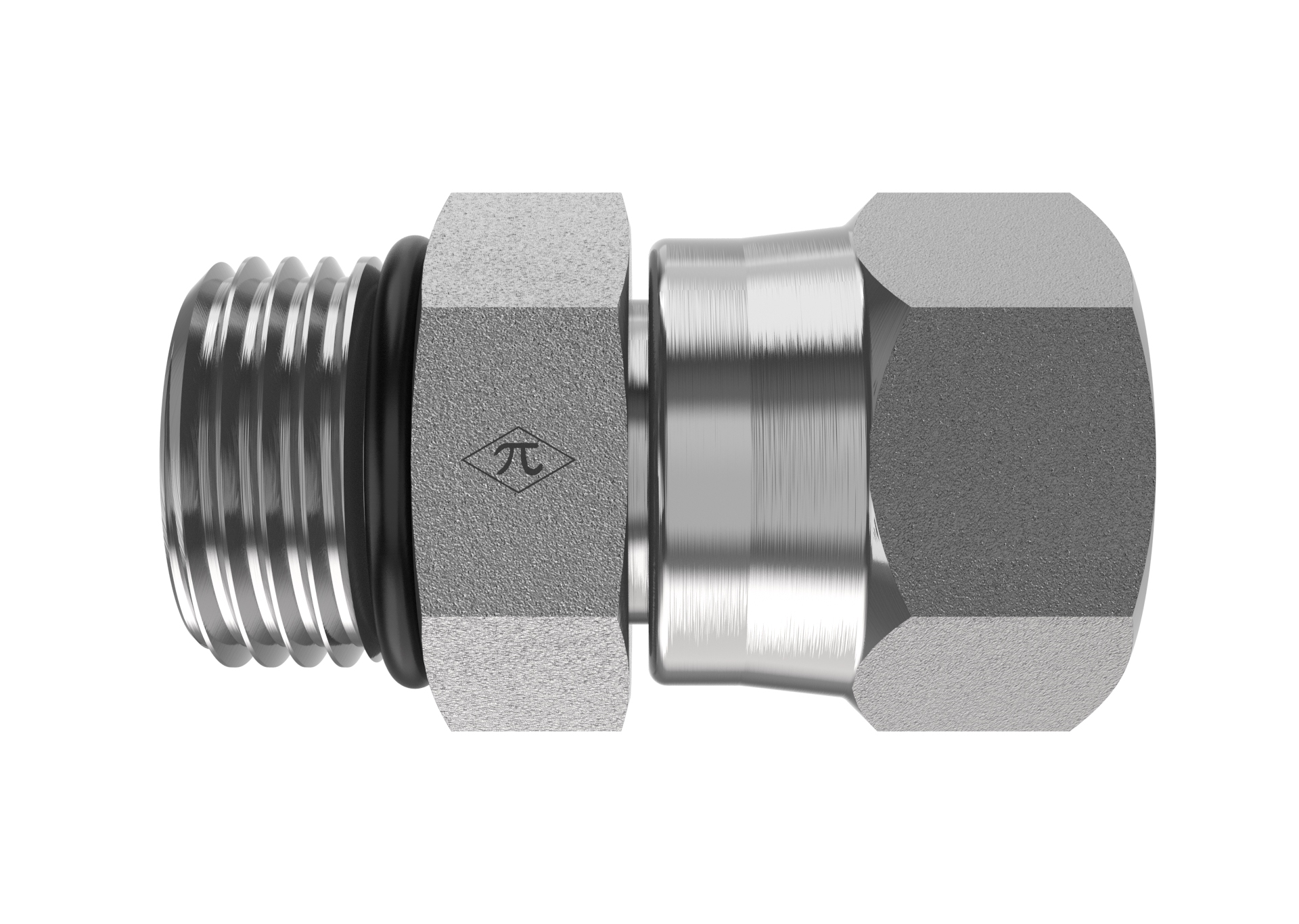

3/4-16 Male ORB x 1/2" Female JIC Swivel

6402-08-08-O-SS is a 3/4-16 Male ORB x 1/2" Female JIC Swivel in the 6402-O Series. For connecting SAE port to JIC lines using a swivel for alignment.

  • Stainless Steel
  • Swivel Connector
  • None
$147.00
(0) Write a Review
SKU:
6402-08-08-O-SS

Product Details

Connection A
TypeMale ORB
Port Size3/4-16
StandardSAE J1926
Thread Type3/4-16 UNF
Connection B
TypeFemale JIC Swivel
Tube OD1/2"
StandardSAE J514 - Class 2B Thread
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Connector
Weight0.17 lb
PlatingNone
Cross References
Aeroquip259-2266-8-8
Parker8 F65OX-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
