6404-04-02

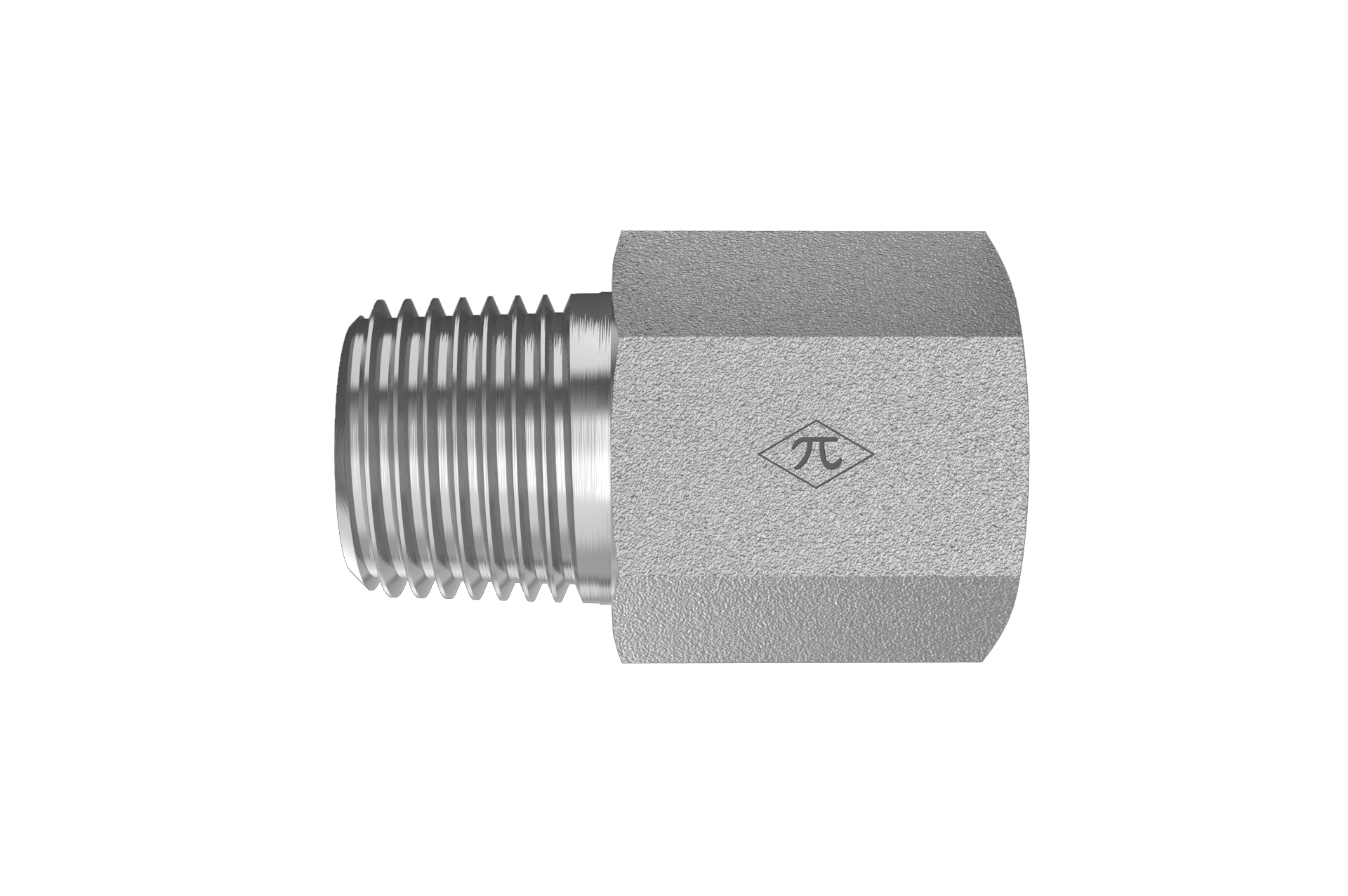

7/16-20 Female ORB × 1/8" Male NPTF · Straight Male Adapter

The HGW 6404-04-02 is a straight male adapter joining 7/16-20 female ORB to 1/8" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$2.36
(0) Write a Review
SKU:
6404-04-02

Product Details

Connection A
TypeFemale ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Size7/16-20
Connection B
TypeMale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.07 lb
ShapeMale Adapter
Cross References
Aeroquip2246-2-4S
Parker1/8-4 FHG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
