6404-05-02

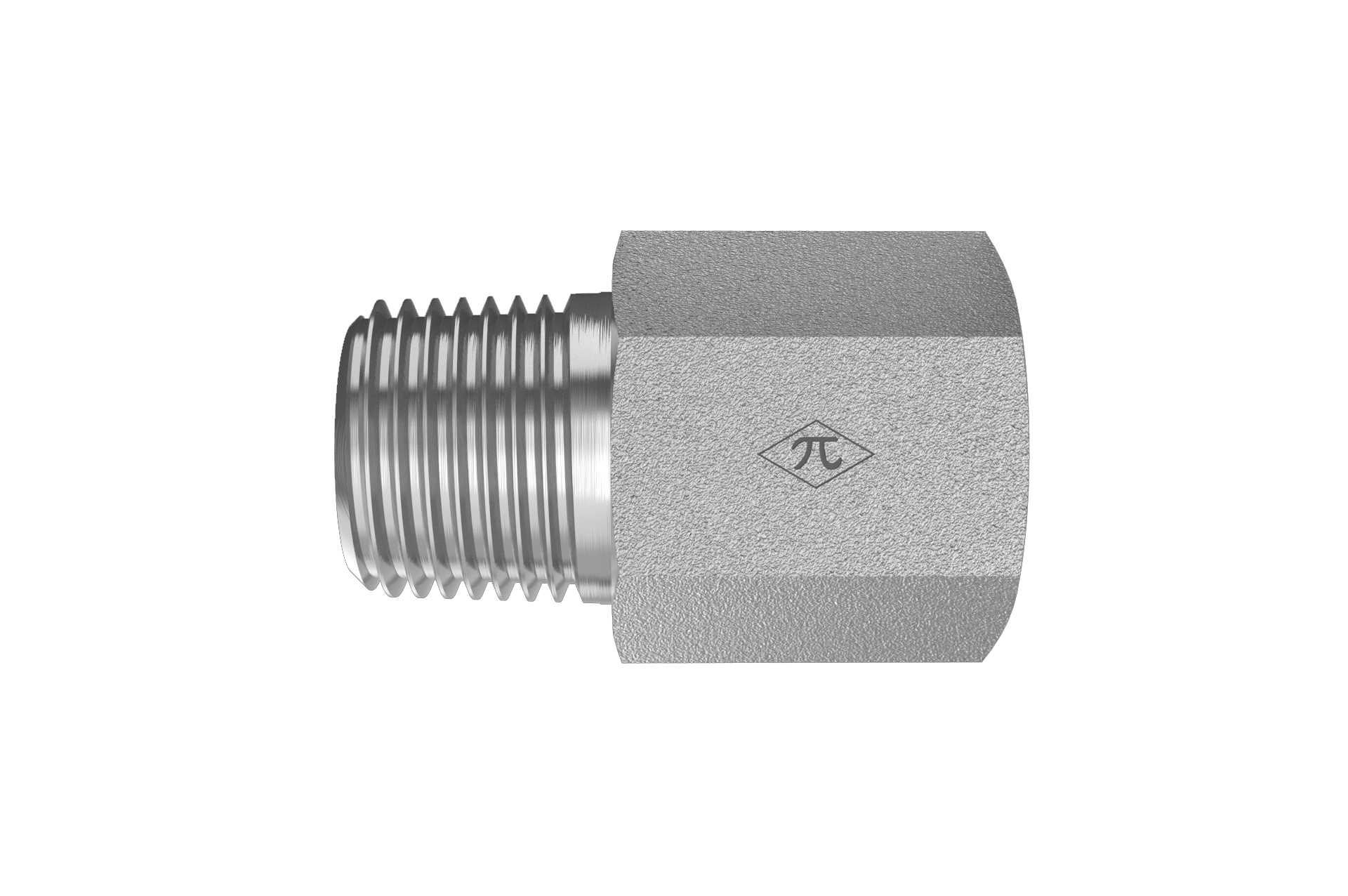

1/2-20 Female ORB x 1/8" Male NPTF 30°

6404-05-02 is a 1/2-20 Female ORB x 1/8" Male NPTF 30° in the 6404 Series. For connecting SAE port to pipe without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$3.20
(0) Write a Review
SKU:
6404-05-02

Product Details

Connection A
TypeFemale ORB
Port Size1/2-20
StandardSAE J1926
Thread Type1/2-20 UNF
Connection B
TypeMale NPTF 30°
Pipe Size1/8"
StandardSAE J476
Thread Type1/2-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.11 lb
ShapeMale Adapter
Cross References
Aeroquip2246-2-5S
Parker1/8-5 FHG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
