6404-05-04

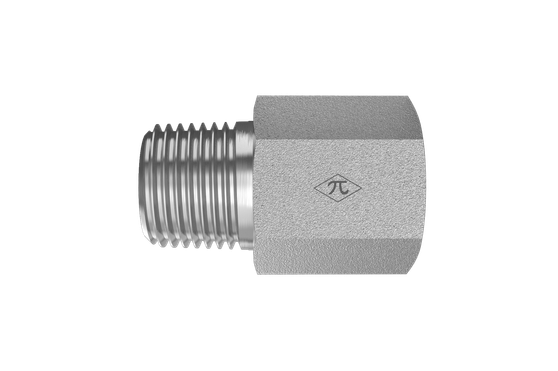

1/2-20 Female ORB × 1/4" Male NPTF · Straight Male Adapter

The HGW 6404-05-04 is a straight male adapter joining 1/2-20 female ORB to 1/4" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$3.92
(0) Write a Review
SKU:
6404-05-04

Product Details

Connection A
TypeFemale ORB
Port Size1/2-20
StandardSAE J1926
Thread Type1/2-20 UNF
Size1/2-20
Connection B
TypeMale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/2-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.10 lb
ShapeMale Adapter
Cross References
Aeroquip2246-4-5S
Parker1/4-5 FHG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
