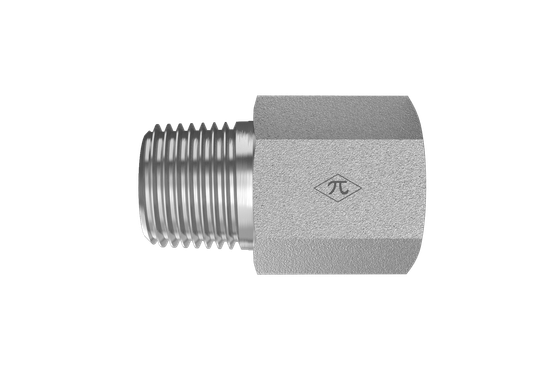

6404-10-12

7/8-14 Female ORB x 3/4" Male NPTF 30°

6404-10-12 is a 7/8-14 Female ORB x 3/4" Male NPTF 30° in the 6404 Series. For connecting SAE port to pipe without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$26.80
(0) Write a Review
SKU:
6404-10-12

Product Details

Connection A
TypeFemale ORB
Port Size7/8-14
StandardSAE J1926
Thread Type7/8-14 UNF
Connection B
TypeMale NPTF 30°
Pipe Size3/4"
StandardSAE J476
Thread Type7/8-14 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.34 lb
ShapeMale Adapter
Cross References
Aeroquip2246-12-10S
Parker3/4-10 FHG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
