6404-12-16

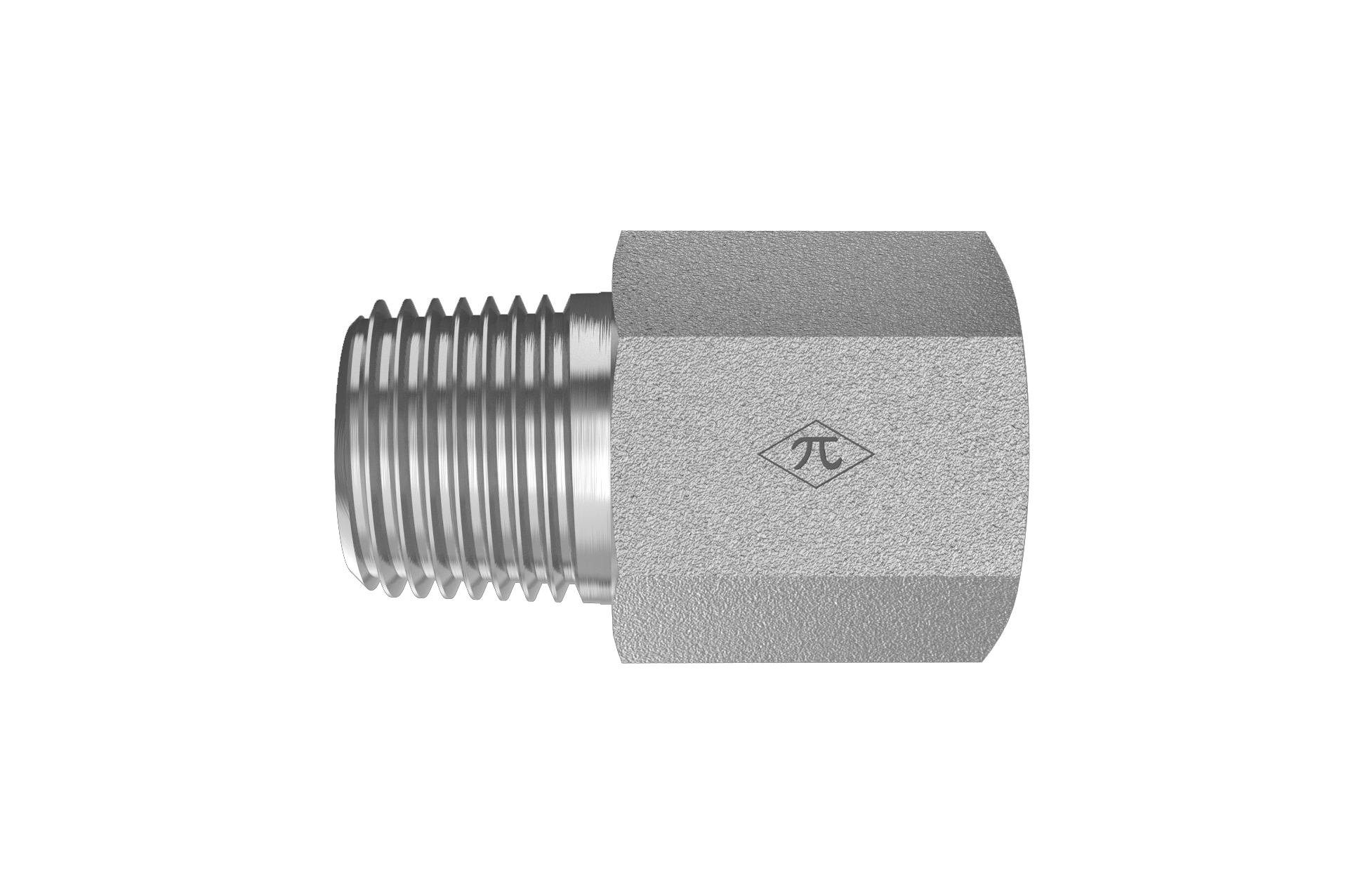

1-1/16-12 Female ORB × 1" Male NPTF · Straight Male Adapter

The HGW 6404-12-16 is a straight male adapter joining 1-1/16-12 female ORB to 1" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$39.69
(0) Write a Review
SKU:
6404-12-16

Product Details

Connection A
TypeFemale ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-1/16-12 UN
Size1-1/16-12
Connection B
TypeMale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.43 lb
ShapeMale Adapter
Cross References
Aeroquip2246-16-12S
Parker1-3/4 FHG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
