6404-16-16

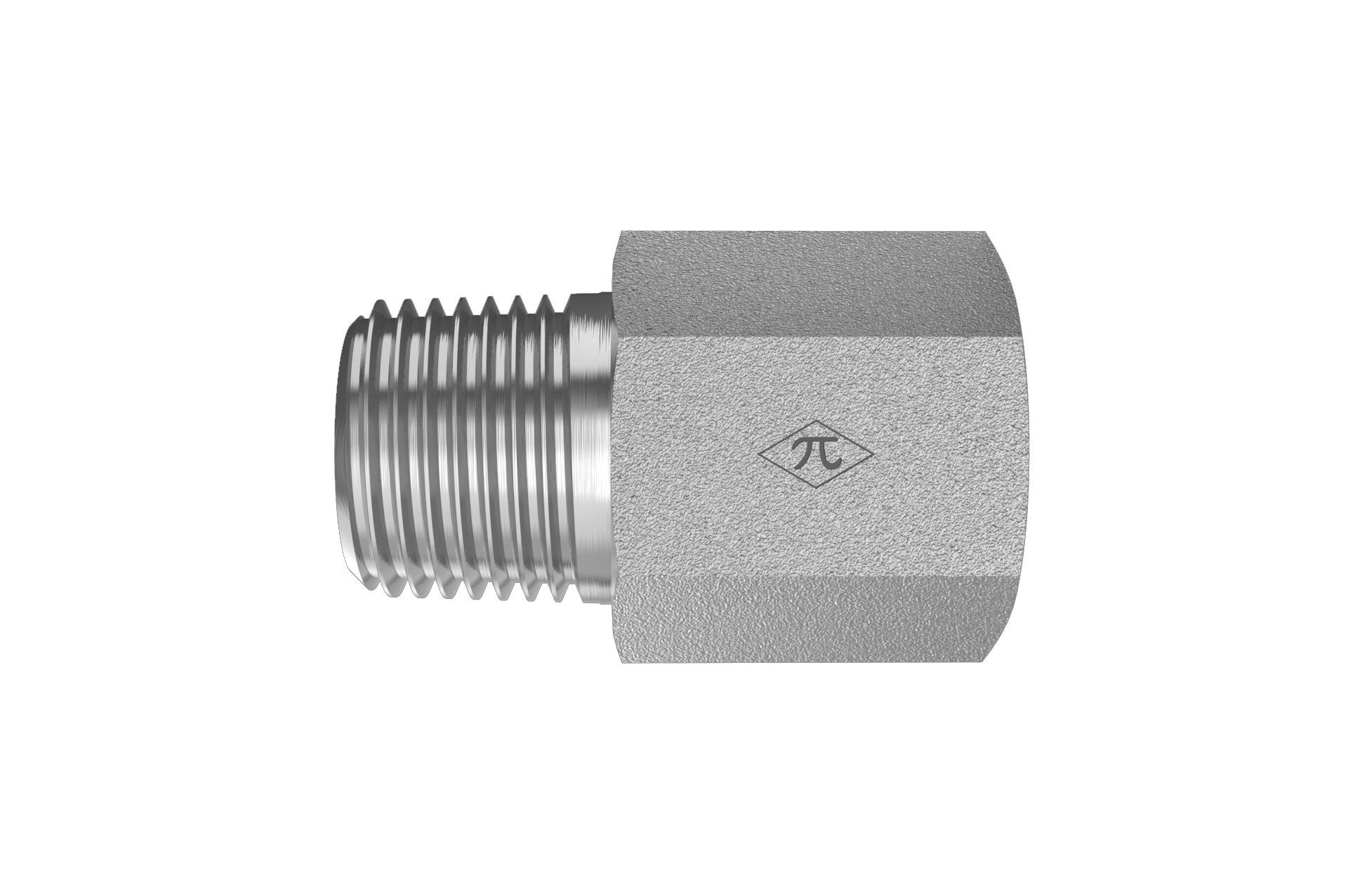

1-5/16-12 Female ORB x 1" Male NPTF 30°

6404-16-16 is a 1-5/16-12 Female ORB x 1" Male NPTF 30° in the 6404 Series. For connecting SAE port to pipe without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$12.58
(0) Write a Review
SKU:
6404-16-16

Product Details

Connection A
TypeFemale ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Connection B
TypeMale NPTF 30°
Pipe Size1"
StandardSAE J476
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.50 lb
ShapeMale Adapter
Cross References
Aeroquip2246-16-16S
Parker1-16 FHG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
