6404-16-24

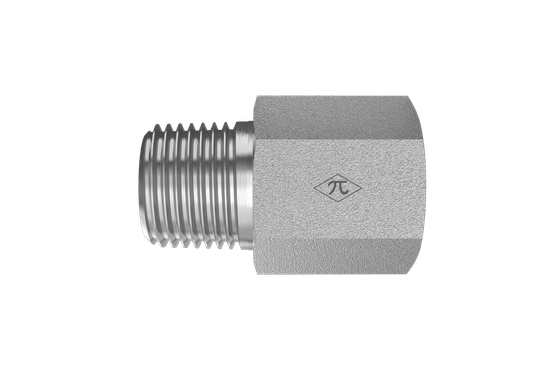

1-5/16-12 Female ORB × 1-1/2" Male NPTF · Straight Male Adapter

The HGW 6404-16-24 is a straight male adapter joining 1-5/16-12 female ORB to 1-1/2" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$95.89
(0) Write a Review
SKU:
6404-16-24

Product Details

Connection A
TypeFemale ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Size1-5/16-12
Connection B
TypeMale NPTF
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1.13 lb
ShapeMale Adapter
Cross References
Aeroquip2246-24-16S
Parker1 1/2-16 FHG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
