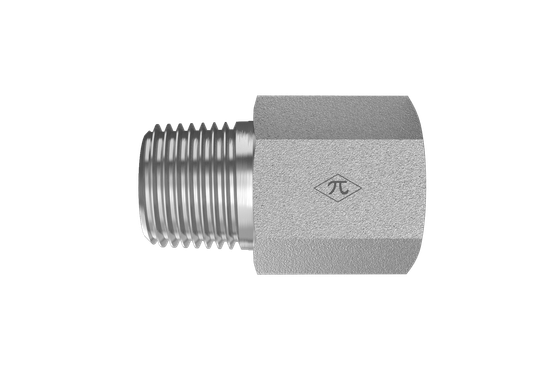

Google Merchant product image

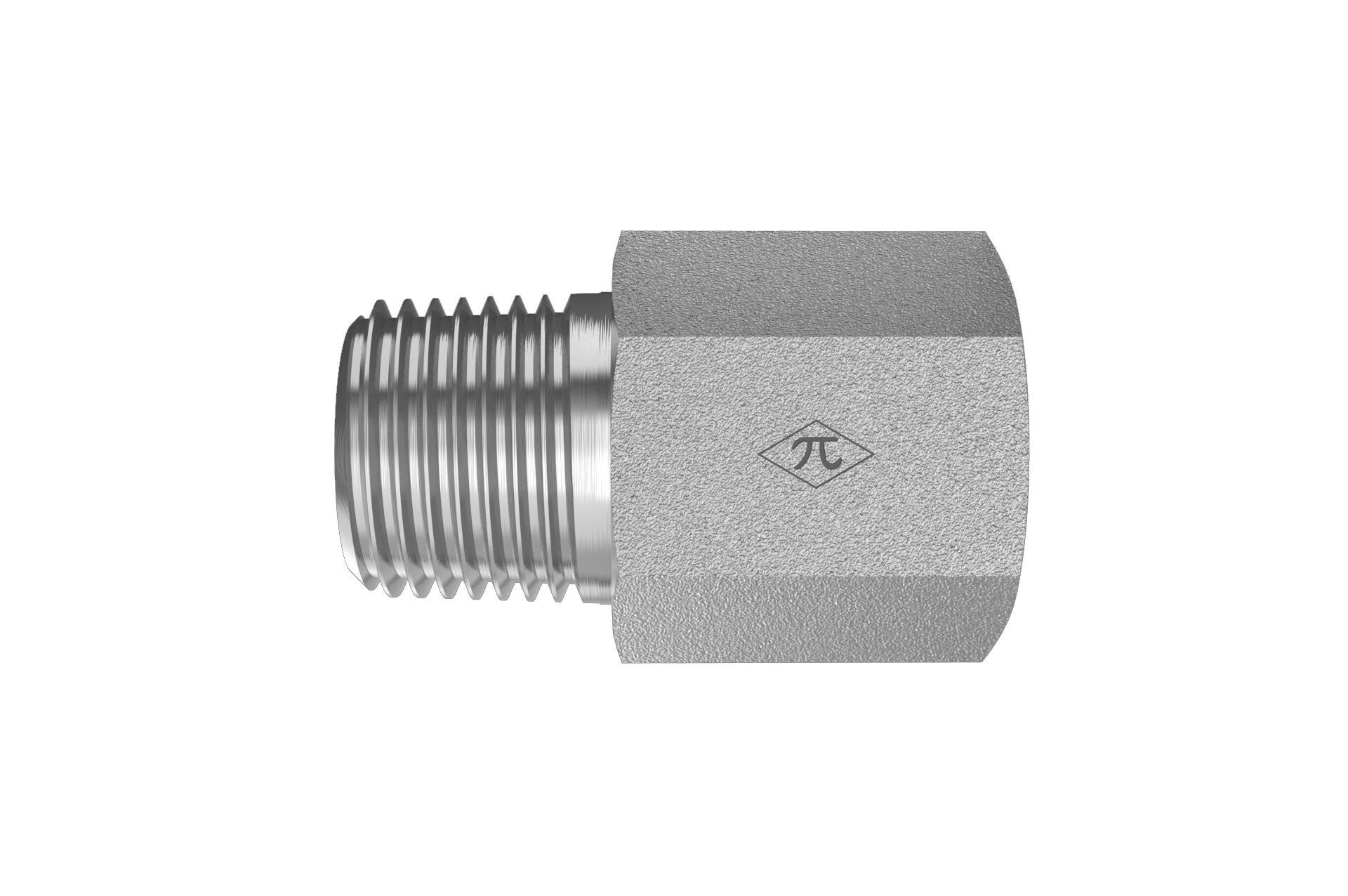

6404-20-20

1-5/8-12 Female ORB x 1-1/4" Male NPTF 30°

6404-20-20 is a 1-5/8-12 Female ORB x 1-1/4" Male NPTF 30° in the 6404 Series. For connecting SAE port to pipe without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$29.49
(0) Write a Review
SKU:
6404-20-20

Product Details

Connection A
TypeFemale ORB
Port Size1-5/8-12
StandardSAE J1926
Thread Type1-5/8-12 UN
Connection B
TypeMale NPTF 30°
Pipe Size1-1/4"
StandardSAE J476
Thread Type1-5/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.97 lb
ShapeMale Adapter
Cross References
Aeroquip2246-20-20S
Parker1 1/4-20 FHG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
